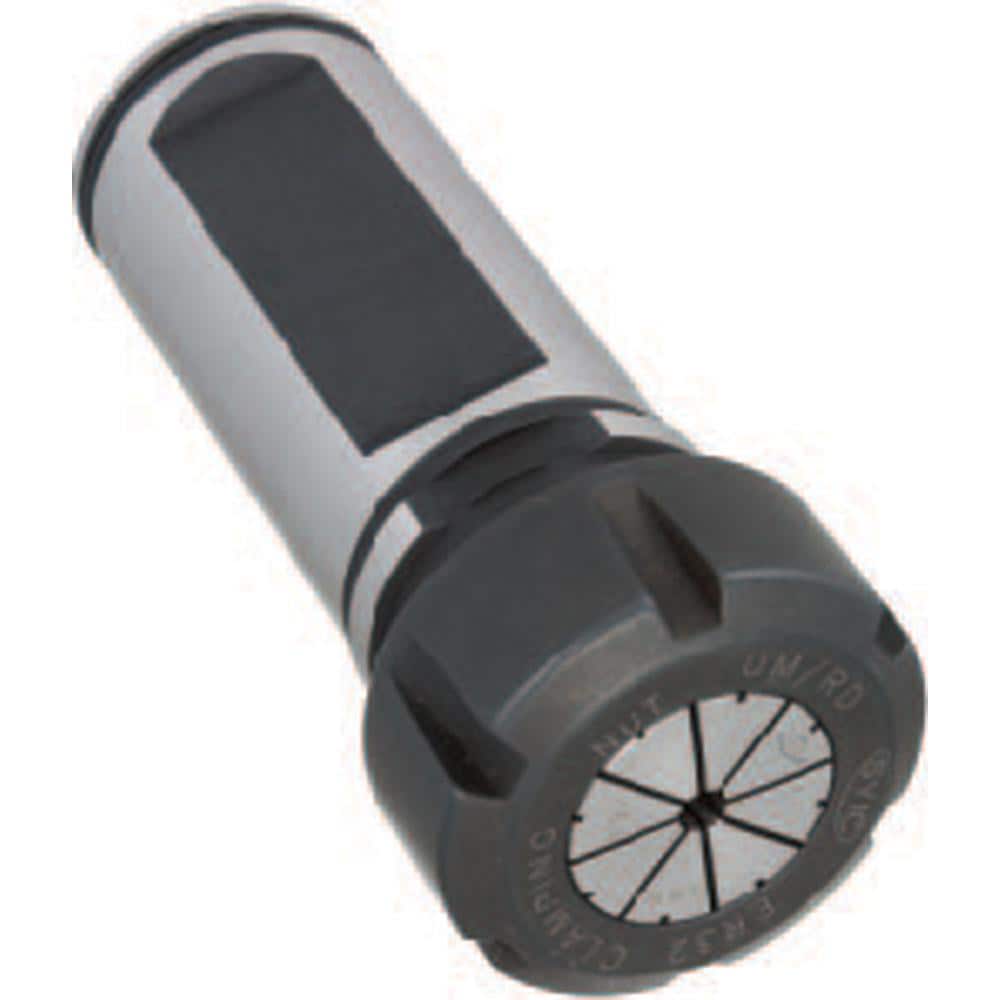

Collet Chuck: 1.0240 to 1.0240" Capacity, ER Collet, 1.2500" Shank Dia, Straight Shank
Item #: 64479462
Brand: Techniks
Model #: 04786
Product Specifications
| Collet System | ER |
| Collet Series | ER40 |
| Shank Type | Straight |
| Projection (mm) | 60.00 |
| Through Coolant | No |
| Minimum Collet Capacity (Decimal Inch) | 1.0240 |
| Maximum Collet Capacity (Decimal Inch) | 1.0240 |
| Overall Length (mm) | 120 |
| Nose Diameter (Mm) ( - 2 Decimals) | 63 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Type | STRSHK |
| UNSPSC Code | 27112808 |
| Thread Size (mm) | M28x1.5 |
| Collet System | ER |
| Collet Series | ER40 |
| Shank Type | Straight |
| Projection (mm) | 60.00 |
| Through Coolant | No |
| Minimum Collet Capacity (Decimal Inch) | 1.0240 |
| Maximum Collet Capacity (Decimal Inch) | 1.0240 |
| Overall Length (mm) | 120 |
| Nose Diameter (Mm) ( - 2 Decimals) | 63 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Type | STRSHK |
| UNSPSC Code | 27112808 |
| Thread Size (mm) | M28x1.5 |
| MSC Part # | 64479462 |
| Mfr Part # | 04786 |
| Country of Origin Country of Origin is subject to change | Taiwan |
