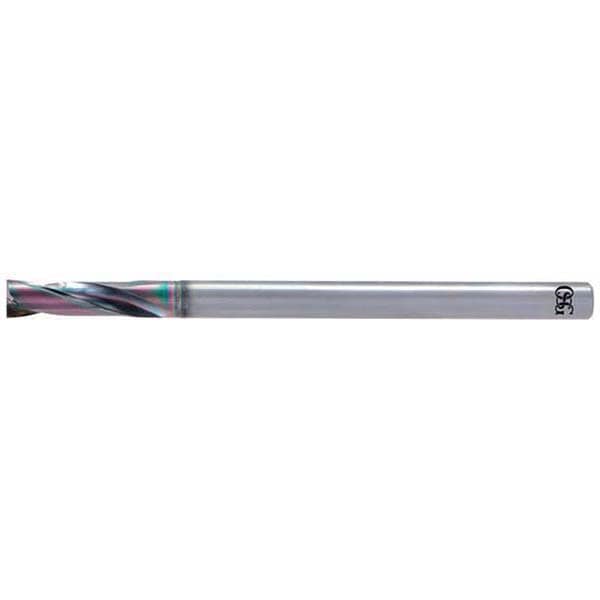

Screw Machine Length Drill Bit: 10.00 mm Dia, 180 deg Point, Solid Carbide
Item #: 14935019
Brand: OSG
Model #: 3333000
Product Specifications
| Drill Bit Size (mm) | 10.00 |
| Drill Bit Size (Decimal Inch) | 0.3937 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Multi-layer |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 180 |
| Coolant Through | No |
| Primary Workpiece Material | Cast Iron; Steel; Hardened Materials |
| Point Type | Flat Bottom |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.0394 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Shank Diameter (mm) | 10.00 |
| Series | 5705 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Proprietary Coating/Finish | EgiAs |
| Drill Length Type | Screw Machine |
| Flute By Diameter Ratio | 2xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | +0 to -0.022 mm |
| Flute Length (mm) | 42.00 |
| Drill Bit Size Range (Decimal Inch) | 0.3500 to 0.4000 |
| Drill Bit Size Range (mm) | 9.50 - 11.00 |
| UNSPSC Code | 23241635 |
| Drill Bit Size (mm) | 10.00 |
| Drill Bit Size (Decimal Inch) | 0.3937 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Multi-layer |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 180 |
| Coolant Through | No |
| Primary Workpiece Material | Cast Iron; Steel; Hardened Materials |
| Point Type | Flat Bottom |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.0394 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Shank Diameter (mm) | 10.00 |
| Series | 5705 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Proprietary Coating/Finish | EgiAs |
| Drill Length Type | Screw Machine |
| Flute By Diameter Ratio | 2xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | +0 to -0.022 mm |
| Flute Length (mm) | 42.00 |
| Drill Bit Size Range (Decimal Inch) | 0.3500 to 0.4000 |
| Drill Bit Size Range (mm) | 9.50 - 11.00 |
| UNSPSC Code | 23241635 |
| MSC Part # | 14935019 |
| Mfr Part # | 3333000 |
| Country of Origin Country of Origin is subject to change | Japan |
