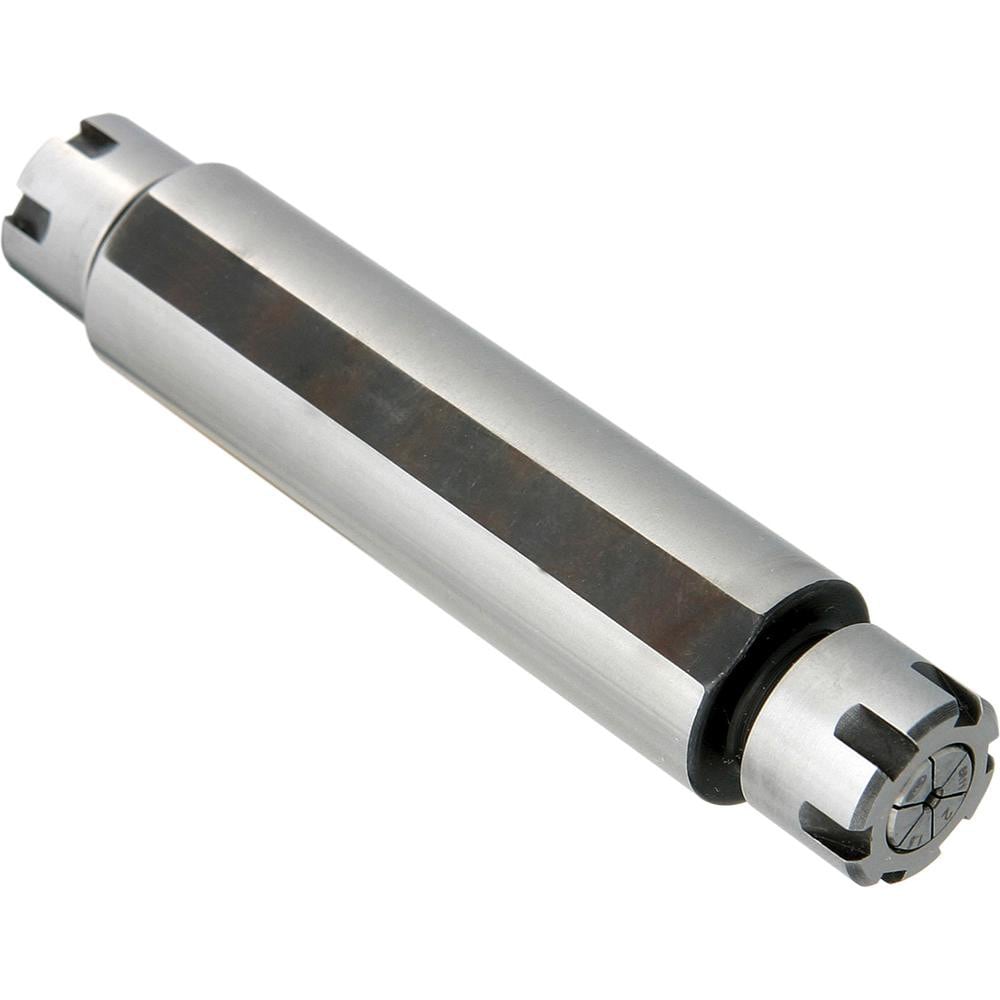

Collet Chuck: 0.5510 to 0.5510" Capacity, ER Collet, 1.0000" Shank Dia, Straight Shank
Item #: 60697356
Brand: Techniks
Model #: BD-DC20-1-4C
Product Specifications
| Collet System | ER |
| Collet Series | ER20 |
| Shank Type | Straight |
| Projection (Decimal Inch) | 4.0000 in |
| Through Coolant | No |
| Minimum Collet Capacity (Decimal Inch) | 0.5510 |
| Maximum Collet Capacity (Decimal Inch) | 0.5510 |
| Overall Length (Decimal Inch) | 4.47 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.1000 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Type | STRSHK |
| UNSPSC Code | 27112808 |
| Collet System | ER |
| Collet Series | ER20 |
| Shank Type | Straight |
| Projection (Decimal Inch) | 4.0000 in |
| Through Coolant | No |
| Minimum Collet Capacity (Decimal Inch) | 0.5510 |
| Maximum Collet Capacity (Decimal Inch) | 0.5510 |
| Overall Length (Decimal Inch) | 4.47 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.1000 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Type | STRSHK |
| UNSPSC Code | 27112808 |
| MSC Part # | 60697356 |
| Mfr Part # | BD-DC20-1-4C |
| Country of Origin Country of Origin is subject to change | Taiwan |
