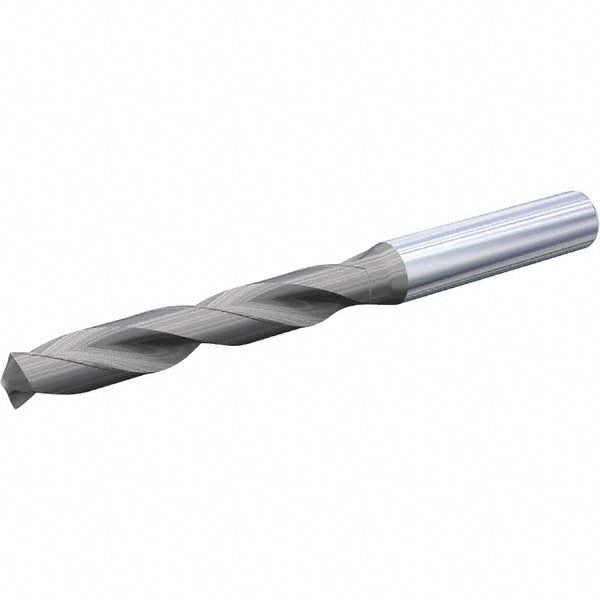

Jobber Drill: 5.50 mm Dia, 140 deg Point, Solid Carbide
Item #: 14964811
Brand: Kennametal
Model #: 6782522
Product Specifications
| Drill Bit Size (mm) | 5.50 |
| Drill Bit Size (Decimal Inch) | 0.2165 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | Multi-layer |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Overall Length (mm) | 82.00 |
| Overall Length (Decimal Inch) | 3.2283 |
| Flute Length (mm) | 43.00 |
| Flute Length (Decimal Inch) | 1.6929 |
| Proprietary Coating/Finish | AlTiN;TiN |
| Flute By Diameter Ratio | 6xD |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (mm) | 6.35 |
| Maximum Drilling Depth (mm) | 34.90 |
| Shank Length (mm) | 36.5 |
| Drill Point Length (mm) | 1.21 |
| Shank Type | Straight |
| Drill Bit Grade | KCP15B |
| Drill Bit Size Range (Decimal Inch) | 0.2000 - 0.2500 |
| Drill Bit Size Range (mm) | 5.00 - 6.00 |
| UNSPSC Code | 23241634 |
