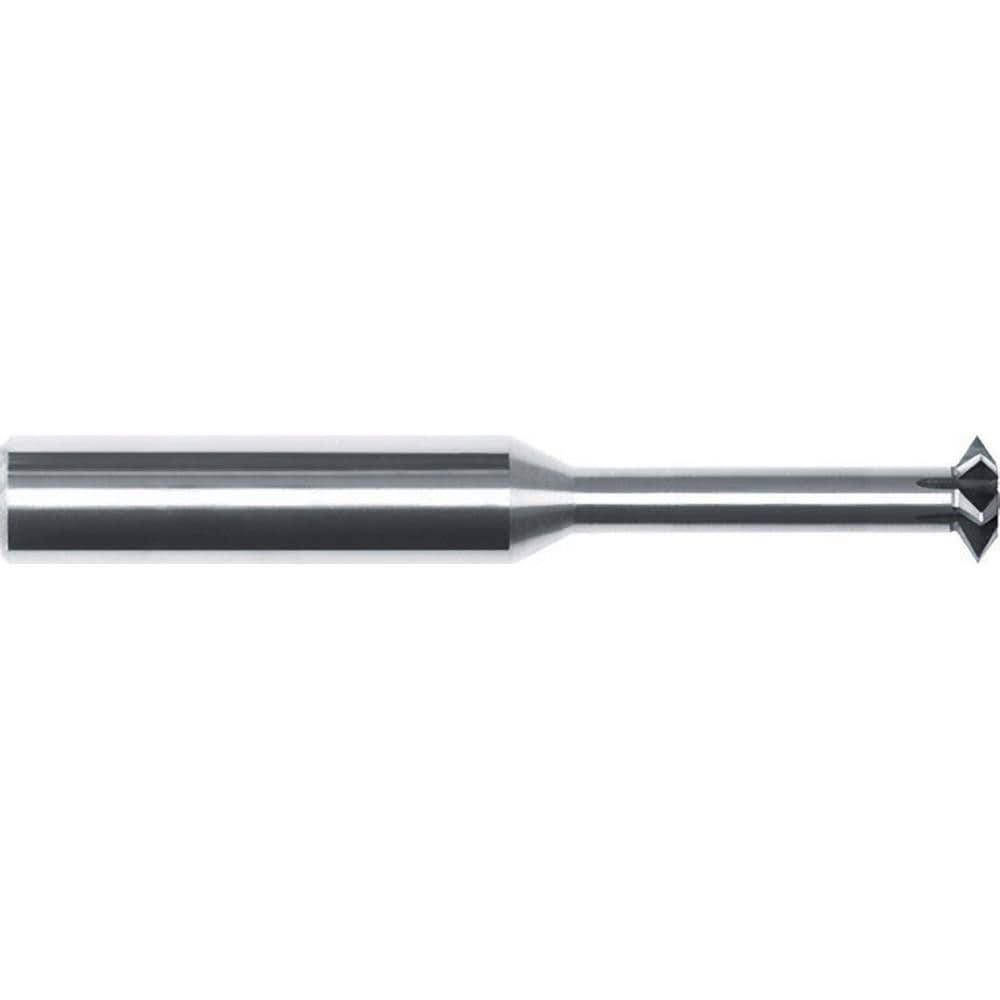

Single Profile Thread Mills; Maximum Threads Per Inch: 56; Minimum Pitch (Decimal Inch): 0.0556; Minimum Threads Per Inch: 18; Maximum Pitch (Decimal Inch): 0.0179; Material: Solid Carbide; Thread Type: Internal, External
Item #: 66260993
Brand: Internal Tool
Model #: 88-1017
Product Specifications
| Maximum Threads Per Inch | 56 |
| Minimum Pitch (Decimal Inch) | 0.0556 |
| Minimum Threads Per Inch | 18 |
| Maximum Pitch (Decimal Inch) | 0.0179 |
| Material | Solid Carbide |
| Thread Type | Internal; External |
| Thread Size | 1/4-18 |
| Thread Depth (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 3/16 |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Cutting Diameter (Decimal Inch) | 0.1870 |
| Length of Cut (Inch) | 1 |
| Minimum Nominal Diameter (Inch) | 0.1870 |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Length (Inch) | 2-1/2 |
| Material Grade | Micrograin |
| Neck Diameter (Decimal Inch) | 0.0900 |
| Neck Length (Decimal Inch) | 1.0000 |
| Series | 88 |
| Thread Standard | UN |
| Number Of Flutes | 4 |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.0000 |
| Coating/Finish | Natural |
| UNSPSC Code | 23242117 |
| Maximum Threads Per Inch | 56 |
| Minimum Pitch (Decimal Inch) | 0.0556 |
| Minimum Threads Per Inch | 18 |
| Maximum Pitch (Decimal Inch) | 0.0179 |
| Material | Solid Carbide |
| Thread Type | Internal; External |
| Thread Size | 1/4-18 |
| Thread Depth (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 3/16 |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Cutting Diameter (Decimal Inch) | 0.1870 |
| Length of Cut (Inch) | 1 |
| Minimum Nominal Diameter (Inch) | 0.1870 |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Length (Inch) | 2-1/2 |
| Material Grade | Micrograin |
| Neck Diameter (Decimal Inch) | 0.0900 |
| Neck Length (Decimal Inch) | 1.0000 |
| Series | 88 |
| Thread Standard | UN |
| Number Of Flutes | 4 |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.0000 |
| Coating/Finish | Natural |
| UNSPSC Code | 23242117 |
| MSC Part # | 66260993 |
| Mfr Part # | 88-1017 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
