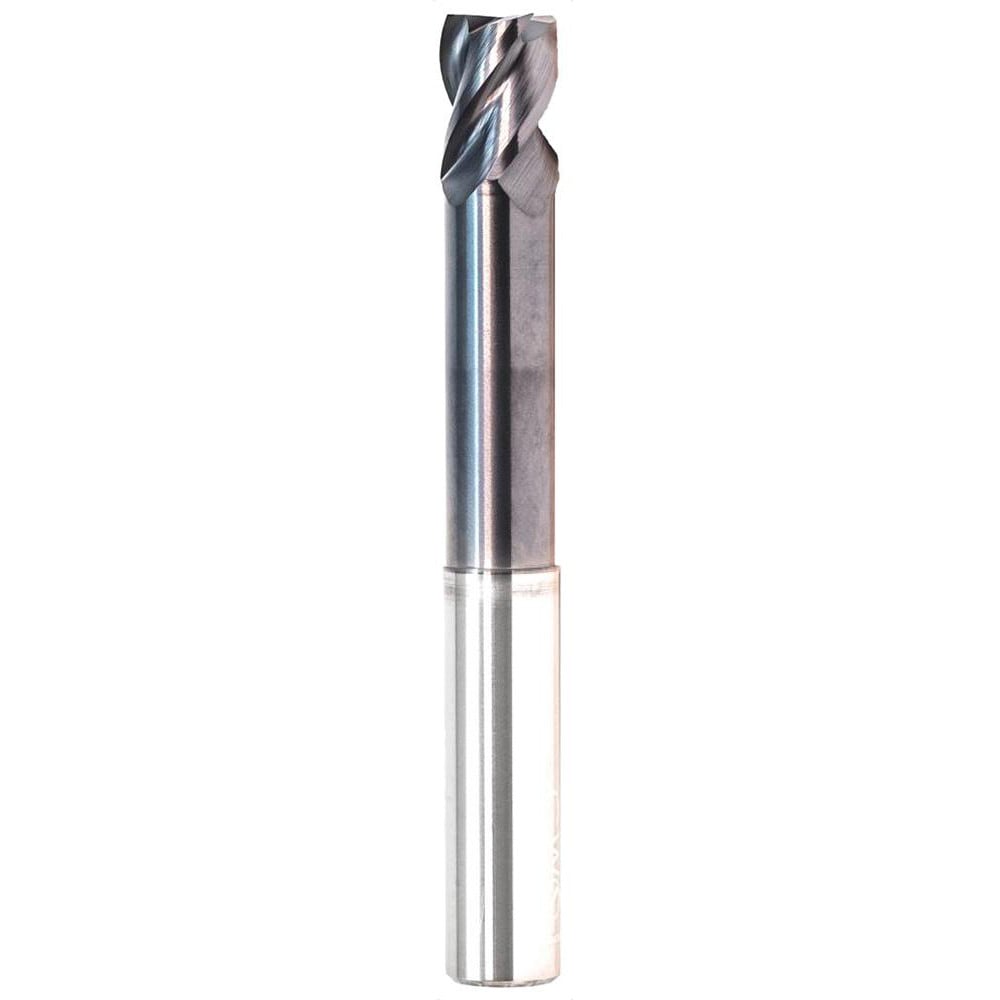

Corner Radius End Mill: 3/8" Dia, 1/2" LOC, 0.0300" Radius, 4 Flute, Solid Carbide
Item #: 18945568
Brand: GWS
Model #: 310835
Product Specifications
| Mill Diameter (Inch) | 3/8 |
| Mill Diameter (Decimal Inch) | 0.3750 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 12.70 |
| Length of Cut (Inch) | 1/2 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | FX3 |
| Overall Length (Inch) | 4 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0300 |
| Variable Index | Yes |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Overall Length (mm) | 101.60 |
| Coolant Through | No |
| Pitch | Normal |
| Overall Length (Decimal Inch) | 4.0000 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.5000 |
| Length Type | Short |
| Flute Type | Spiral |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Shank Diameter (Inch) | 3/8 |
| Reach Length (Decimal Inch) | 2.1250 |
| Reach Length (Inch) | 2-1/8 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; S; M |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Material Grade | Submicron |
| Series | 2105 |
| Material Application | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Coating Classification | Uncoated |
| For Use With. | End Mill Toolholders |
