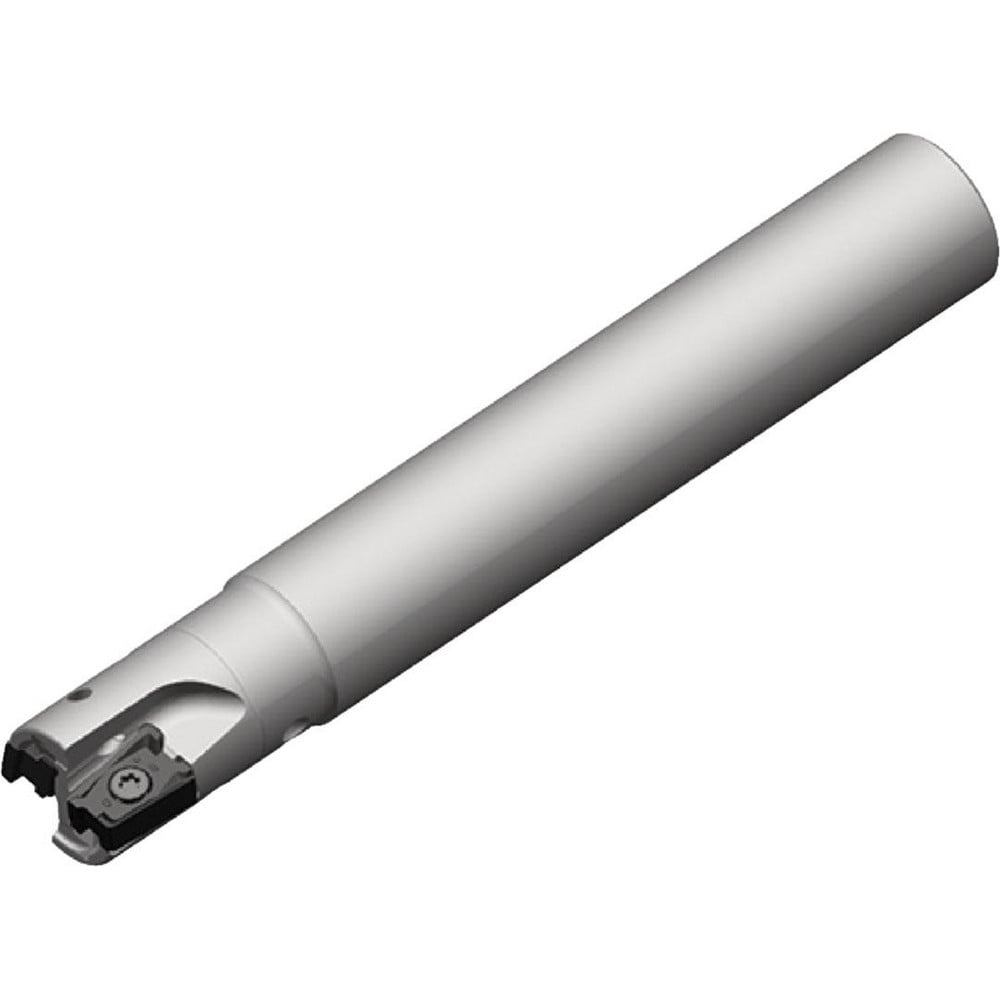

Indexable Square-Shoulder End Mill: 490D032Z03A32XN15L200, 32 mm Cut Dia, 50 mm Max Depth of Cut, 32 mm Dia Cylindrical Shank
Item #: 98374184
Brand: Widia
Model #: 5710288
Product Specifications
| Cutting Diameter (mm) | 32.00 |
| Overall Length (mm) | 2.00 |
| Maximum Depth of Cut (mm) | 50.00 |
| Cutter Style | VSM |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.00 |
| Insert Holding Method | Screw |
| Maximum Ramping Angle | 0 |
| Tool Material | Steel |
| Series | VSM490-15 |
| Flute Type | Helical |
| Lead Angle | 90 |
| Shank Length (Inch) | 5-29/32 |
| Shank Length (mm) | 150.00 |
| Head Length (mm) | 50.00 |
| Maximum RPM | 22000 |
| Tool Application | Pocketing; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Coolant Hole Diameter (mm) | 4.00 |
| Rake | Negative (Axial); Negative (Radial) |
| Complete Insert Compatibility | XNGU15.. |
| Insert Compatibility | XNGU15.. |
| Hand of Holder | Right Hand |
| Rake Angle | -17.4 (Radial),-8 (Axial) |
| Multi-Use Tool | Yes |
| UNSPSC Code | 27112803 |
| ISO Number | VSM490D032Z03A32XN15L200 |
| Manufacturers Catalog Number | VSM490D032Z03A32XN15L200 |
| Usable Length (mm) | 50.00 |
| Number Of Flutes | 3 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
| Country of Origin | Spain |
