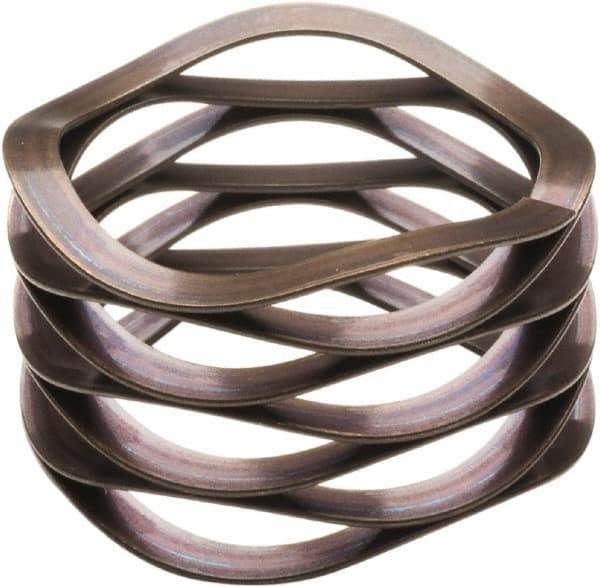

Associated Spring Raymond - 25.4mm ID x 31.75mm OD, Grade 17-7 PH Stainless Steel Multiwave Disc Spring - 0.38mm Thick, 17.78mm Overall Height, 10.08mm Deflection, 20 Lb at Deflection
Item #: 69135333
Brand: Associated Spring Raymond
Model #: MW1250070020S
Exact Tooling IR#: 04
Features and Benefits
Multi-wave disc springs are used for light to medium applications and where space is a concern. The wound material takes up less space that round wire and are a good alternative to compression springs.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Multiwave Disc Spring |
| System of Measurement | Inch |
| Inside Diameter (mm) | 25.40 |
| Inside Diameter (Decimal Inch) | 1.0000 |
| Outside Diameter (mm) | 31.75 |
| Outside Diameter (Decimal Inch) | 1.2500 |
| Material | Stainless Steel |
| Material Grade | 17-7 PH |
| Overall Height (Decimal Inch) | 0.7000 |
| Overall Height (mm) | 17.78 |
| Thickness (Decimal Inch) | 0.0150 |
| Thickness (mm) | 0.38 |
| Deflection (Decimal Inch) | 0.3970 |
| Load at Deflection (Lb.) | 20.00 |
| Deflection (mm) | 10.08 |
| Load at Deflection (N) | 89 |
