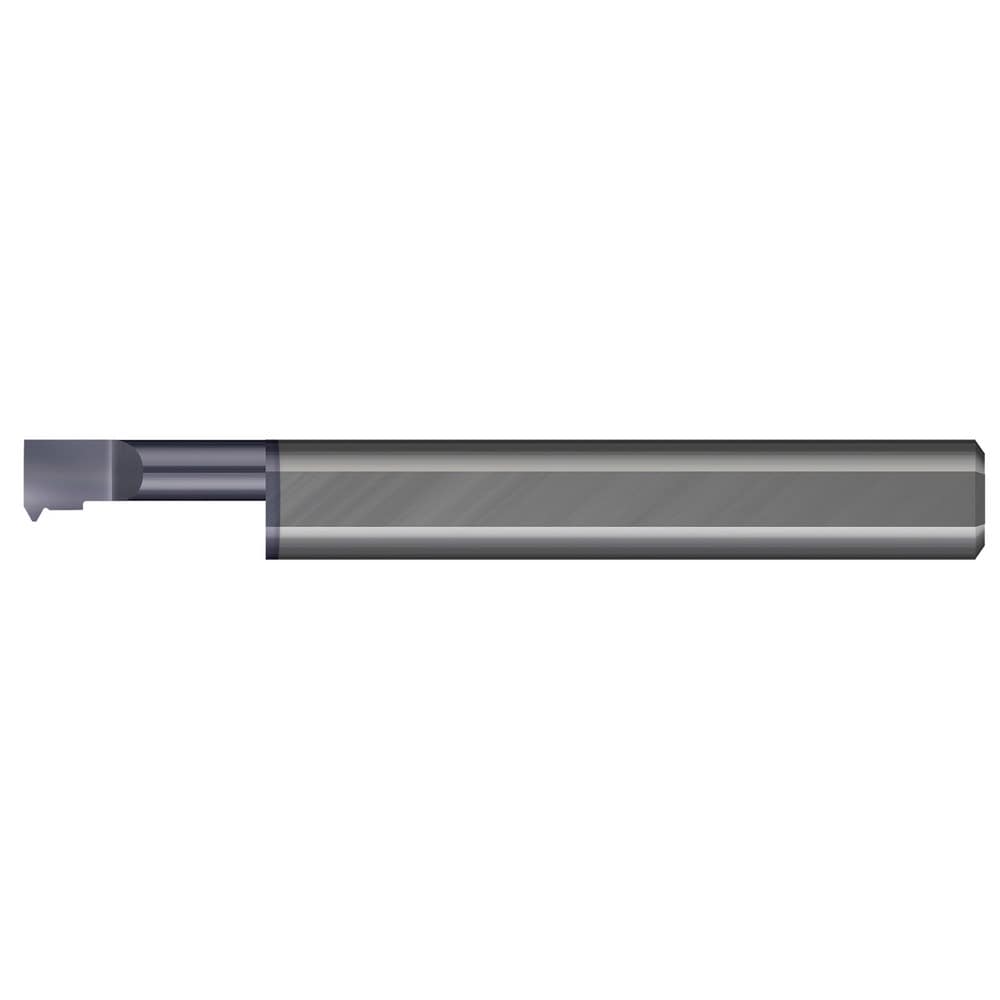

Single Point Threading Tools; Thread Type: Internal, External; Material: Solid Carbide; Profile Angle: 60; Threading Diameter (Decimal Inch): 0.3320; Cutting Depth (Decimal Inch): 0.7500; Maximum Threads Per Inch: 14
Item #: 78126638
Brand: Micro 100
Model #: TT-071614-075X
Product Specifications
| Thread Type | Internal; External |
| Material | Solid Carbide |
| Profile Angle | 60 |
| Threading Diameter (Decimal Inch) | 0.3320 |
| Cutting Depth (Decimal Inch) | 0.7500 |
| Maximum Threads Per Inch | 14 |
| Minimum Threads Per Inch | 14 |
| Shank Diameter (Inch) | 5/16 |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Thread Direction | Right Hand |
| Projection from Edge (Decimal Inch) | 0.0387 |
| Overall Length (Decimal Inch) | 2.0000 |
| Overall Length (Inch) | 2 |
| Coating/Finish | AlTiN |
| Coolant Through | No |
| UNSPSC Code | 23242117 |
| Country of Origin | UNITED STATES |
