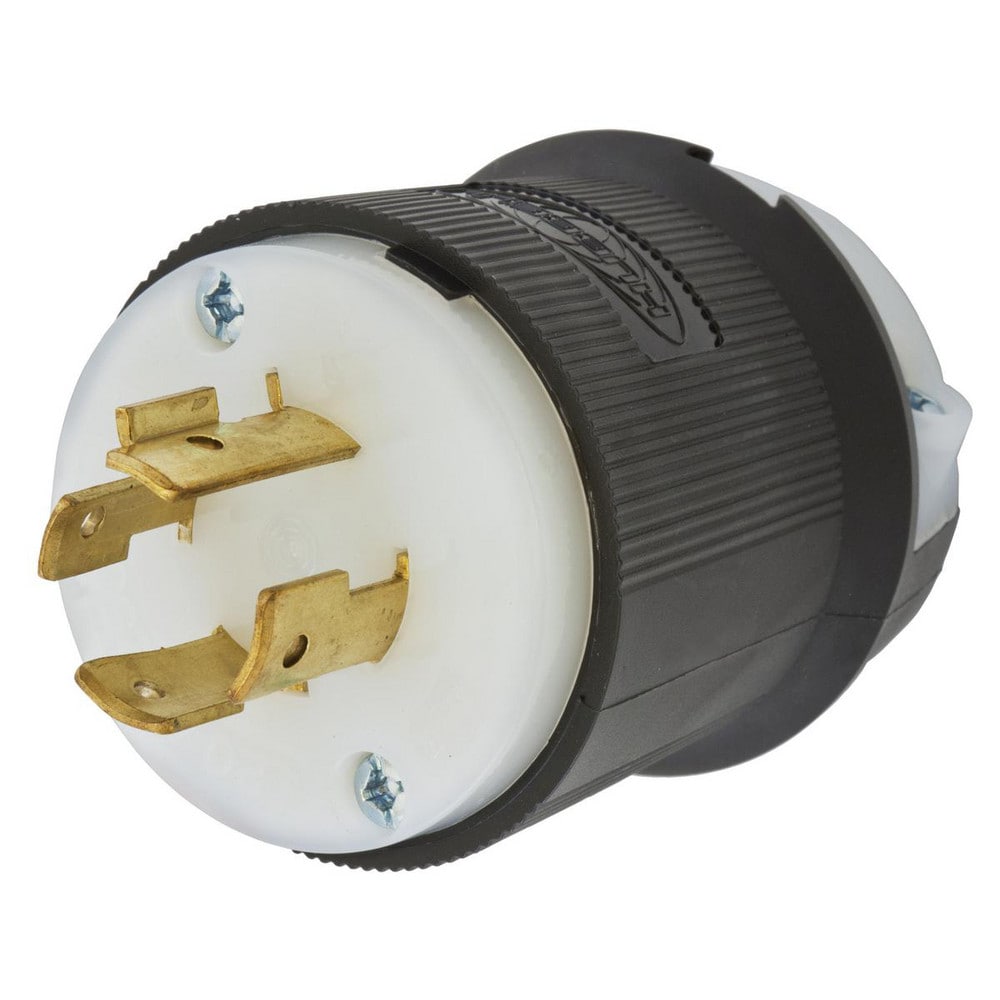

Locking Devices, Twist-Lock, Industrial, Male Insulgrip Plug, 20A 3-Phase 250V AC, 3-Pole 4-Wire Grounding, L15-20P, Spring Terminal, Black and White Nylon.
Item #: 87855672
Brand: Hubbell Wiring Device-Kellems
Model #: HBL2421ST
Product Specifications
| Connector Type | Plug |
| Grade | Industrial |
| Material | Nylon |
| Grounding Style | Grounding |
| Amperage | 20.0000 |
| Voltage | 250V |
| Power Rating | 250 V ac |
| Number Of Poles | 3 |
| Number Of Wires | 4.000 |
| Color | White; Black |
| Minimum Cord Diameter (mm) | 9 |
| Minimum Cord Diameter (Decimal Inch) | 0.350 |
| Maximum Cord Diameter (mm) | 29 |
| Maximum Cord Diameter (Decimal Inch) | 1.150 |
| Wire Size | 14.000 |
| Standards | Listed to UL 498; 14 AWG - 8 AWG Stranded Copper Wire; Certified to CSA C22.2 No.42; Fed.Spec. W-C-596 |
| Nema Configuration | L15-20P |
| UNSPSC Code | 39122205 |
| Country of Origin | China |
