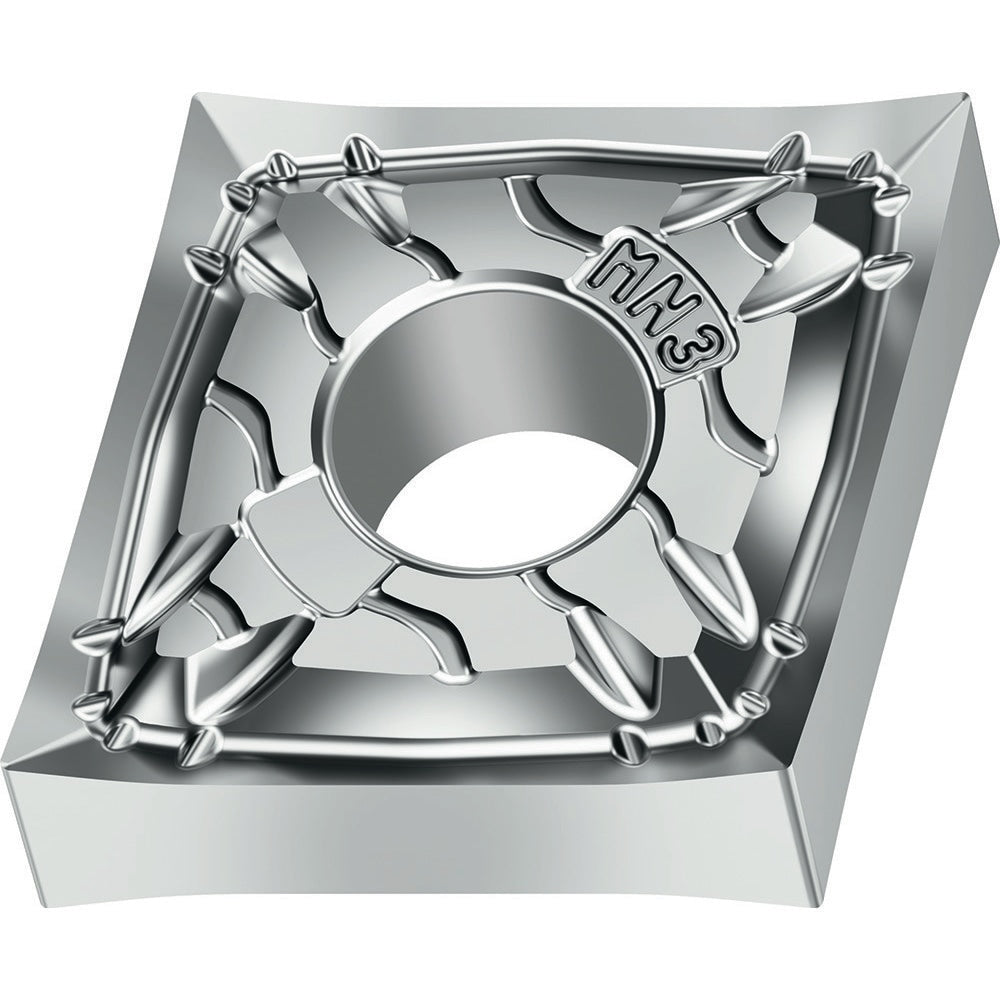

Turning Insert: CNGG430.5MMN3 WN10, Carbide
Item #: 88913918
Brand: Walter
Model #: 7749890
Product Specifications
| ANSI Insert Code | CNGG4(3)0.5 |
| ISO Insert Code | CNGG120402 |
| Relief Angle | 0.000 |
| Insert Style | CNGG |
| Corner Radius (mm) | 0.17 |
| Included Angle | 80.00 |
| Manufacturer Grade | WN10 |
| Coating/Finish | Uncoated |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness | 4.76 |
| Series | CNGG |
| Inscribed Circle (mm) | 12.70 |
| Insert Material | Carbide |
| Insert Shape | Rhombic 80° |
| Chip Breaker Operation | Medium Machining |
| Grade Characteristics | Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | C |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.1600 |
| Maximum Depth of Cut (mm) | 3.00 |
| Insert Holding Method | Screw |
| Clearance Code | N |
| Tolerance Code | G |
| Insert Length (mm) | 12.90 |
| Manufacturers Catalog Number | CNGG120402M-MN3 WN10 |
| Chip Breaker | MN3 |
| Width (mm - 2 Decimals) | 12.70 |
| ANSI Size Code | 4(3)0.5 |
| ISO Size Code | 120402 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 12 |
| Country of Origin | Germany |
