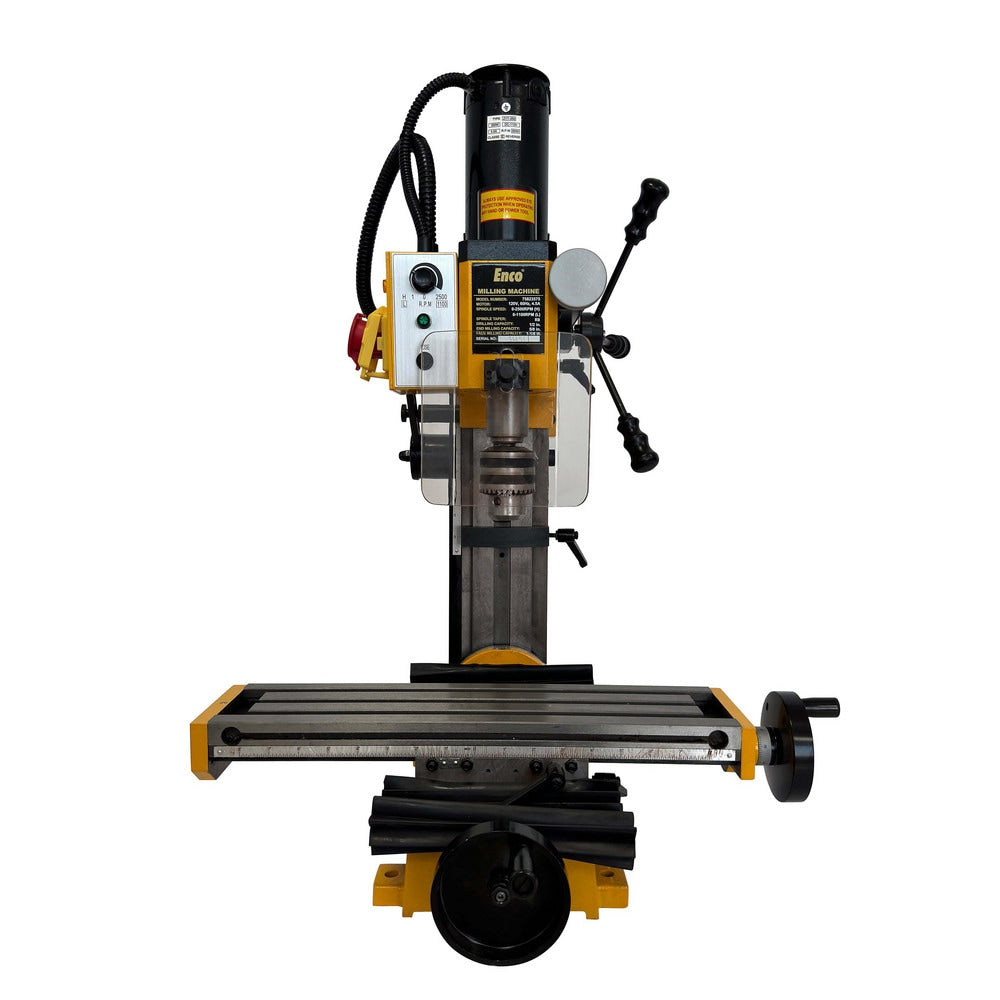

18" X 5" Compact Milling Drilling Machine, Various Speed, 110V
Item #: 75823575
Brand: Enco
Model #: X2
Product Specifications
| Drilling Capacity in Steel (Inch) | 33/64 |
| End Milling Capacity (Decimal Inch) | 0.6299 |
| Face Milling Capacity (Decimal Inch) | 1.1811 |
| Left-Hand Head Tilt (Degrees) | 45.00 |
| Right-Hand Head Tilt (Degrees) | 45.00 |
| Cross Travel (Inch) | 5-1/8 |
| Longitudinal Travel (Inch) | 11-13/16 |
| Column Type | Square |
| Speed Setting | Variable Speed |
| Maximum Spindle to Table Distance (Inch) | 10-1/2 |
| Minimum Spindle Speed | 100 |
| Maximum Spindle Speed | 2500 |
| Number of Spindle Speeds | Variable |
| Number of T-Slots | 3.000 |
| Horsepower | 1/2 |
| Swing Distance (Inch) | 6-37/64 |
| Table Load Capacity (Lb.) | 44.10 |
| Table Length (Inch) | 18-7/64 |
| Table Width (Inch) | 4-23/32 |
| Phase | Single |
| Spindle Diameter (Inch) | 4-23/32 |
| Spindle Speed Control | Variable Speed |
| Spindle Taper Size | R8 |
| Spindle Travel Length (Inch) | 7-3/32 |
| Voltage | 110V |
| Overall Height (Inch) | 29-59/64 |
| Overall Length (Inch) | 23-15/64 |
| Overall Depth (Inch) | 22-53/64 |
| Includes | 13mm drill chuck, wrench set, oil can |
| Features | Micro feed to feed at 0.002" per line, Variable-speed control and gear drive, Dovetail column and cast iron base for better stability. |
| Machine Type | Bench; Mill Drill Combination |
| Power Down Feed | No |
| Drilling Capacity in Cast Iron (Inch) | 1/2 |
| Maximum Spindle To Column Distance (Inch) | 6-37/64 |
| Special Item Information | Overload protection |
| UNSPSC Code | 23241500 |
| Country of Origin | China |
