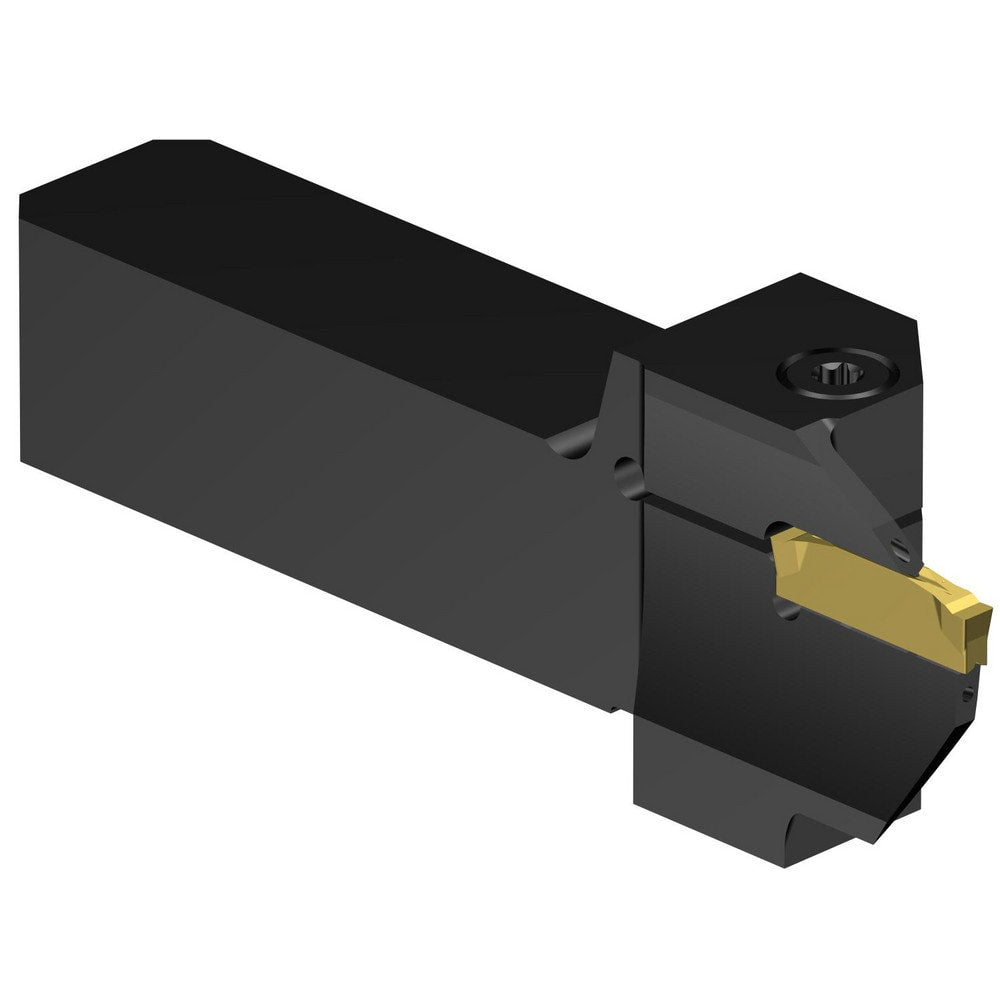

Indexable Grooving Toolholder: C2A-QS20-LFG15B-090CB, Left Hand, 0.1575" Max Groove Width
Item #: 77186534
Brand: Sandvik Coromant
Model #: 8273648
Product Specifications
| Toolholder Type | Face Grooving |
| Insert Seat Size | 3.00 |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Maximum Depth of Cut (mm) | 15.00 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (mm) | 4.00 |
| Toolholder Style | C2A-QS..LF..B..CB |
| Maximum Groove Width (Decimal Inch) | 0.1575 |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | G |
| Shank Width (Decimal Inch) | 0.7874 |
| Shank Width (mm) | 20.00 |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Series | C2A-QS..LF..B..CB |
| Overall Length (mm) | 101.8 |
| Overall Length (Decimal Inch) | 4.0079 |
| Maximum Overhang (Inch) | 1.9799 |
| Back of Bar to Cutting Edge (mm) | 101.80 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.0079 |
| Center to Cutting Edge (Decimal Inch) | 0.8071 |
| Center to Cutting Edge (mm) | 20.50 |
| Head Height (Decimal Inch) | 0.7874 |
| Head Height (mm) | 20.000 |
| Head Length (Decimal Inch) | 1.9799 |
| Head Length (mm) | 50.29 |
| UNSPSC Code | 27112809 |
| Maximum Groove Outside Diameter (mm) | 160.00 |
| Maximum Groove Outside Diameter (Decimal Inch) | 6.2992 |
| Minimum Axial Groove Inside Diameter(mm) | 90.0000 |
| Minimum Axial Groove Inside Diameter (Decimal Inch) | 3.5433 |
| Mount Type | Clamp |
| Manufacturers Catalog Number | C2A-QS20-LFG15B-090CB |
| Toolholder Material | Steel |
| Insert Hand | Left Hand |
| Number of Inserts Included in Order | 0 |
| Coolant Through | Yes |
| Country of Origin | Sweden |
