Plasma Cutters & Plasma Cutter Kits; Amperage: 10-30 Amp; Input Voltage: 120/240V; Maximum Cutting Depth: 10 mm; Cable Length: 20 ft; Duty Cycle: 40%; Open Circuit Voltage: 290.0 V; Overall Length: 18 in; Overall Width: 7-1/2 in
Item #: 88425376
Brand: ESAB
Model #: 1-3000-1
Product Specifications
| Amperage | 10-30 Amp |
| Input Voltage | 120/240V |
| Maximum Cutting Depth | 10 mm |
| Cable Length | 20 ft |
| Duty Cycle | 40% |
| Open Circuit Voltage | 290.0 V |
| Overall Length | 18 in |
| Overall Width | 7-1/2 in |

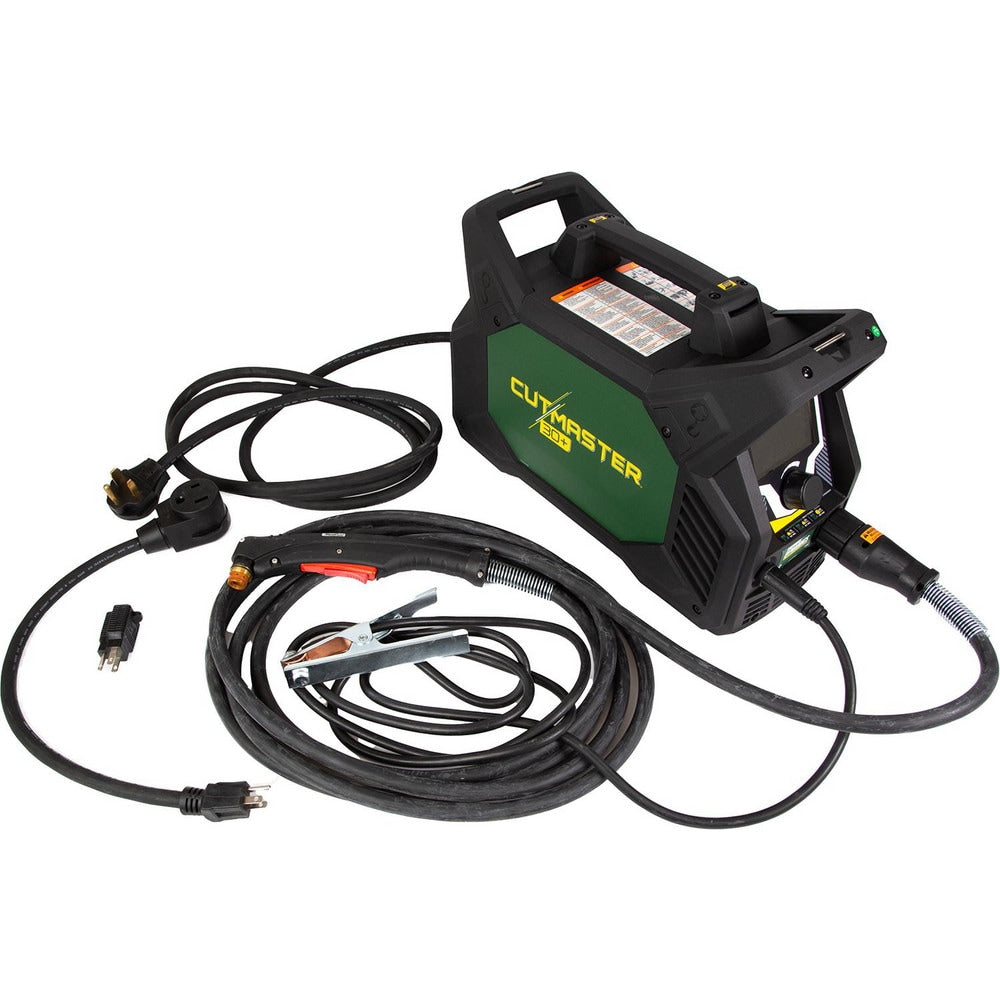

| Includes | Regional Input Power Plugs; SL60 75 deg Torch with Lead; 3 m (10 ft) Work Lead with Ground Clamp; Consumables Kit; 1/4 in. NPT Air Fitting; Cutmaster30+ Power Supply |
| Features | Automatic Air Pressure Detection and Post-Cut Air Purge to Expand Consumable Life; Cutmaster Black Series Consumables Included for up to 60% Longer Life; Comes with Industrial SL60 1Torch featuring 2T/4T Function, Safety Trigger Lock, and Double-Tap Trigger to Conserve Bottled Air; Dual-Input 120-240V, 1 ph Power with Automatic Voltage Detection that sets Max Output Amperage; Bright 4.3 in. TFT LCD Display with Glove-Friendly Adjustment Knob Simplifies use and Provides Greater Control and Flexibility; Switch Between Normal and Grate Cutting Modes; Industry Leading 3-Year Warranty on Power Supply and 1-Year Warranty on Torch and Leads; Cutmaster30+ is Compatible with all 1Torch ATC Torch Connections; Portable and Durable with Three Handles and Lightweight, industrial All-Weather Housing; 40% Duty Cycle @ 30A (120V)100% @ 20A (120V) |
| Series | Cutmaster 30+ |
| Height (Decimal Inch) | 12-5/8 in |
| UNSPSC Code | 23271800 |
| Country of Origin | China |
