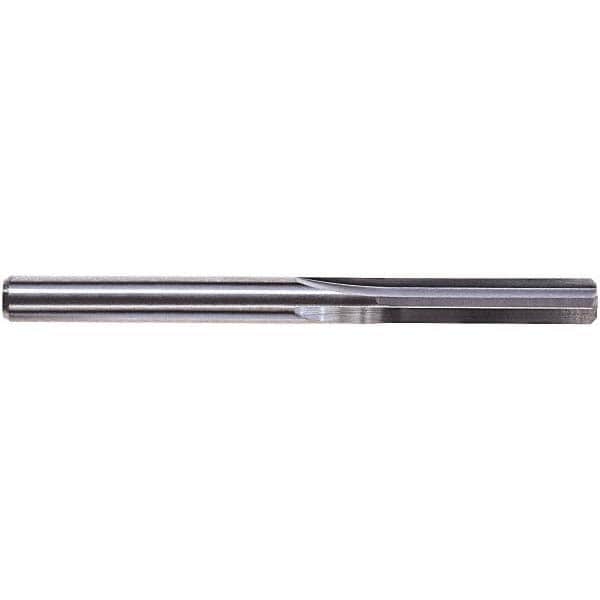

Chucking Reamer: 0.1620" Dia, 2-3/4" OAL, 7/8" Flute Length, Straight-Cylindrical Shank, Solid Carbide
Item #: 77220861
Brand: M.A. Ford
Model #: 27216200
Product Specifications
| Reamer Diameter Range (Decimal Inch) | 0.1500 - 0.1999 |
| Reamer Diameter (Decimal Inch) | 0.1620 |
| Reamer Diameter Range (mm.) | 5.00 - 6.00 |
| Tool Material | Solid Carbide |
| Flute Type | Straight |
| Spiral Direction | Right Hand |
| Coating/Finish | Bright/Uncoated |
| Shank Type | Straight-Cylindrical |
| Coolant Through | No |
| Dowel Pin Reamer | No |
| Over/Under Size Reamer | No |
| Overall Length (mm) | 76.00 |
| Overall Length (Decimal Inch) | 2.7500 |
| Overall Length (Inch) | 2-3/4 |
| Number of Flutes | 4 |
| Shank Diameter (mm) | 5.21 |
| Shank Diameter (Decimal Inch) | 0.1580 |
| Flute Length (Inch) | 7/8 |
| Flute Length (mm) | 25.50 |
| Reamer Diameter Tolerance | +0.0001 to +0.0003 in |
| Over/Under Size Direction | Over |
| Series | 272 |
| Cutting Direction | Right Hand |
| UNSPSC Code | 23241611 |
| Country of Origin | UNITED STATES |
