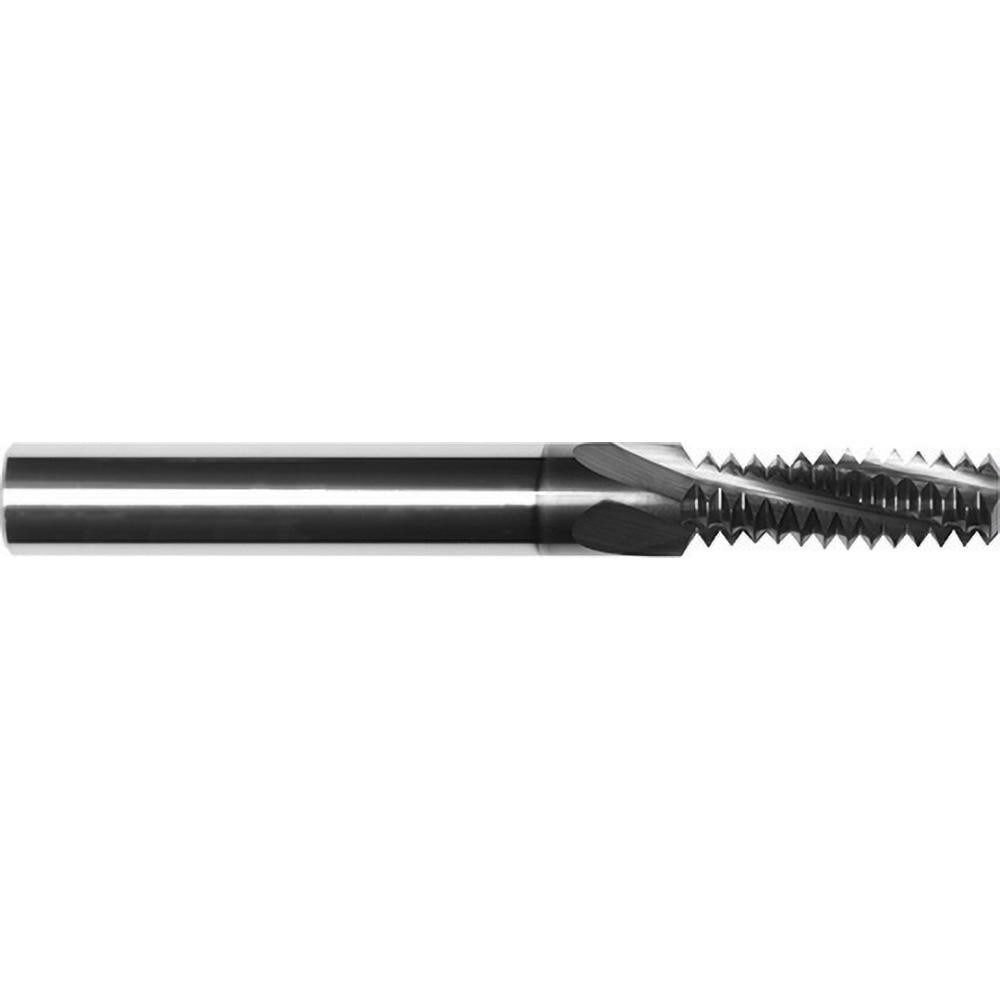

Helical Flute Thread Mill: 9/16-18, Internal & External, 4 Flute, 0.3750" Shank Dia, Solid Carbide
Item #: 69774628
Brand: Internal Tool
Model #: 89-1280
Product Specifications
| Material | Solid Carbide |
| Thread Size (Inch) | 9/16-18 |
| Thread Type | Internal; External |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Shank Type | Straight-Cylindrical |
| Cutting Diameter (Decimal Inch) | 0.3700 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.8750 |
| Minimum Nominal Diameter (Inch) | 0.3700 |
| Shank Length (Decimal Inch) | 2.6250 |
| Shank Length (Inch) | 2-5/8 |
| Overall Length (Decimal Inch) | 3.5000 |
| Thread Standard | UNF |
| Flute Direction | Right Hand |
| Material Grade | Micrograin |
| Series | 89 |
| Number Of Flutes | 4 |
| Coating/Finish | AlTiN |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 0.8750 |
| Teeth Per Inch | 18 |
| UNSPSC Code | 23242117 |
| Material | Solid Carbide |
| Thread Size (Inch) | 9/16-18 |
| Thread Type | Internal; External |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Shank Type | Straight-Cylindrical |
| Cutting Diameter (Decimal Inch) | 0.3700 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.8750 |
| Minimum Nominal Diameter (Inch) | 0.3700 |
| Shank Length (Decimal Inch) | 2.6250 |
| Shank Length (Inch) | 2-5/8 |
| Overall Length (Decimal Inch) | 3.5000 |
| Thread Standard | UNF |
| Flute Direction | Right Hand |
| Material Grade | Micrograin |
| Series | 89 |
| Number Of Flutes | 4 |
| Coating/Finish | AlTiN |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 0.8750 |
| Teeth Per Inch | 18 |
| UNSPSC Code | 23242117 |
| MSC Part # | 69774628 |
| Mfr Part # | 89-1280 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
