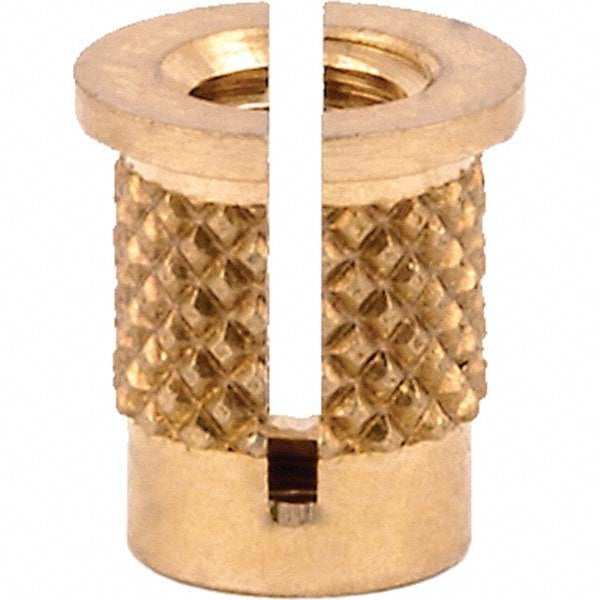

Press Fit Threaded Inserts; Product Type: Flanged; Material: Brass; Drill Size: 0.2188 in; Finish: Uncoated; Thread Size: #8-32; Overall Length (Decimal Inch): 0.3130; Insert Diameter (Decimal Inch): 0.2800; Thread Pitch: 32 in
Item #: 67945733
Brand: E-Z LOK
Model #: 260-008-RS
Product Specifications
| Product Type | Flanged |
| Material | Brass |
| Drill Size | 0.2188 in |
| Finish | Uncoated |
| Thread Size | #8-32 |
| Overall Length (Decimal Inch) | 0.3130 |
| Insert Diameter (Decimal Inch) | 0.2800 |
| Thread Pitch | 32 in |
| Hole Diameter (Decimal Inch) | 0.2190 in |
| Insert Diameter | 0.2800 in |
| For Use On | Plastic |
| Overall Length | 0.31 in |
| Material Grade | 360 |
| Head Diameter (Decimal Inch) | 0.2800 |
| Head Height (Decimal Inch) | 0.0320 in |
| Thread Standard | UNC |
| UNSPSC Code | 31162802 |
| Product Type | Flanged |
| Material | Brass |
| Drill Size | 0.2188 in |
| Finish | Uncoated |
| Thread Size | #8-32 |
| Overall Length (Decimal Inch) | 0.3130 |
| Insert Diameter (Decimal Inch) | 0.2800 |
| Thread Pitch | 32 in |
| Hole Diameter (Decimal Inch) | 0.2190 in |
| Insert Diameter | 0.2800 in |
| For Use On | Plastic |
| Overall Length | 0.31 in |
| Material Grade | 360 |
| Head Diameter (Decimal Inch) | 0.2800 |
| Head Height (Decimal Inch) | 0.0320 in |
| Thread Standard | UNC |
| UNSPSC Code | 31162802 |
| MSC Part # | 67945733 |
| Mfr Part # | 260-008-RS |
| Country of Origin Country of Origin is subject to change | Taiwan |
