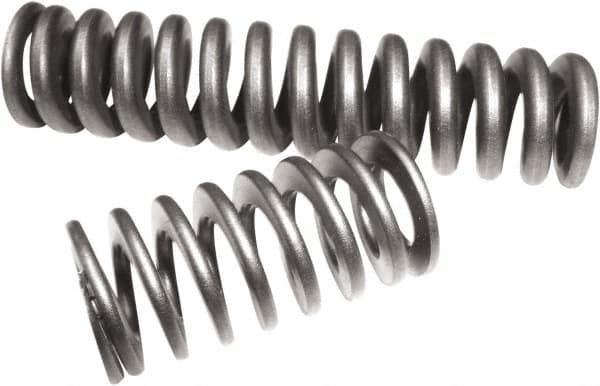

Compression Spring: 2″ OD, 4″ Free Length 4.95 mm Wire Dia, 2668.8 N Max Load, Chrome Alloy Steel
Item #: 69087542
Brand: Associated Spring Raymond
Model #: CV20004000195
Product Specifications
| Type | Compression |
| Outside Diameter (mm) | 50.80 |
| Outside Diameter (Decimal Inch) | 2 |
| Outside Diameter (Inch) | 2 |
| Free Length (Decimal Inch) | 4 |
| Free Length (mm) | 101.60 |
| Free Length | 4 |
| Spring Rate Pounds per Inch | 600.0 in.lb |
| Spring Rate Newtons | 600.0 in.lb |
| Maximum Work Load (N) | 2668.80000000 |
| Solid Height (Decimal Inch) | 2.0500 |
| Solid Height (mm) | 52.07 |
| Spring Rate | 600.0 in.lb |
| Material | Chrome Alloy Steel |
| Wire Size (Decimal Inch) | 0.1950 |
| Wire Size (mm) | 4.95 |
