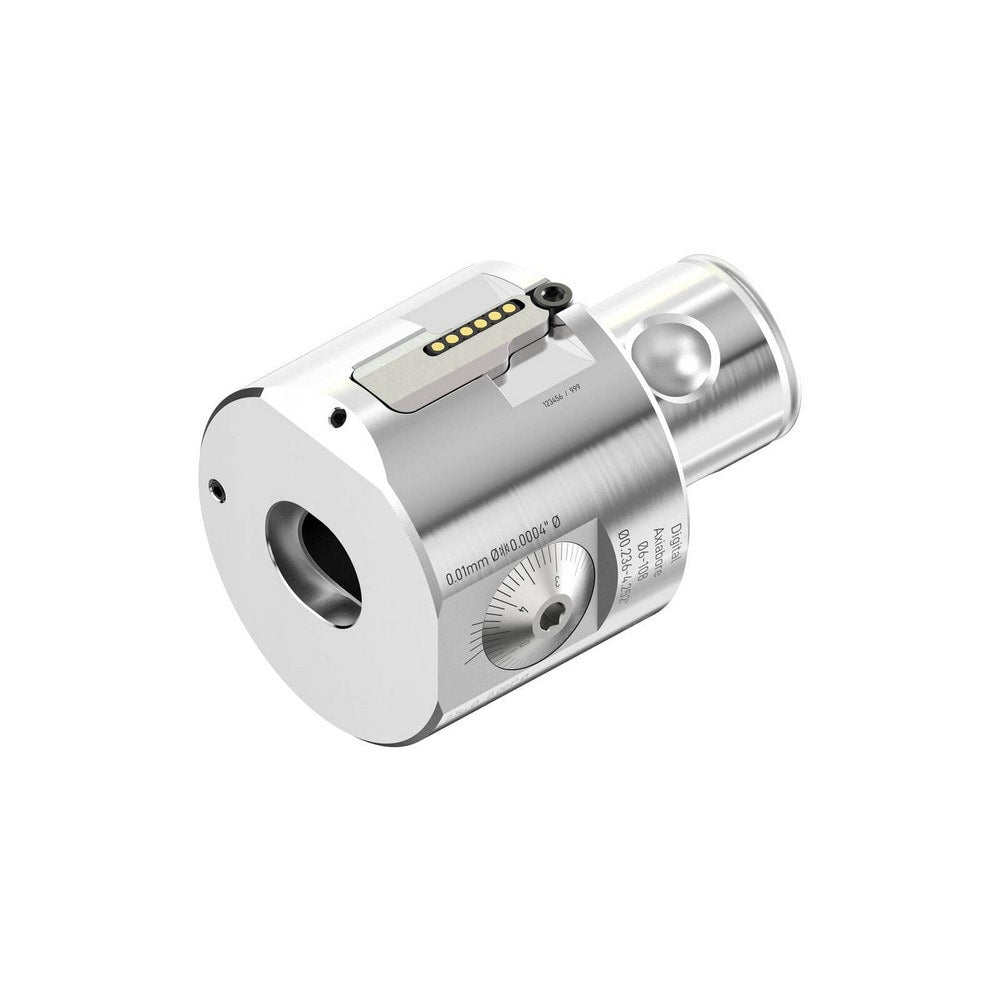

Boring Heads; Head Type: Fine Boring; Type: Fine Boring; Actuation Type: Manual/Screw-Locking; Boring Bar Hole Diameter (Decimal Inch): 0.6299; Minimum Bore Diameter (Decimal Inch): 0.2362
Item #: 87896106
Brand: Seco
Model #: 10215571
Product Specifications
| Head Type | Fine Boring |
| Type | Fine Boring |
| Actuation Type | Manual/Screw-Locking |
| Boring Bar Hole Diameter (Decimal Inch) | 0.6299 |
| Minimum Bore Diameter (Decimal Inch) | 0.2362 |
| Maximum Bore Diameter (Decimal Inch) | 4.2520 |
| Body Diameter (Decimal Inch) | 2.1260 |
| Shank Diameter (Decimal Inch) | 1.1020 |
| Mount Type | Modular |
| Shank Type | Modular Connection |
| Overall Length (Decimal Inch) | 2.9528 |
| Material | Steel |
| Modular Connection Size | G5 |
| Projection (Decimal Inch) | 1.7717 |
| Series | AxiaBore |
| Insert Holder Size | 3 |
| UNSPSC Code | 27112800 |
| Country of Origin | France |
