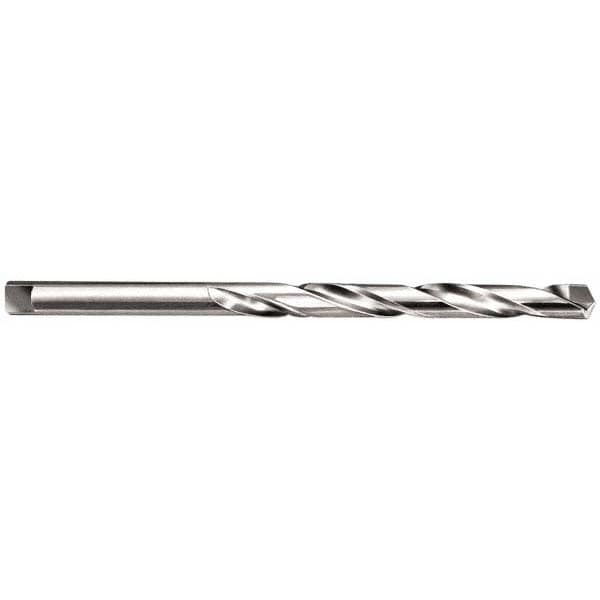

Taper Length Drill Bit: Series 2630, 33/64" Dia, 118 ° Point, Carbide-Tipped
Item #: 76558717
Brand: Made in USA
Model #: 263033
Product Specifications
| Drill Bit Size (Inch) | 33/64 |
| Drill Bit Size (Decimal Inch) | 0.5156 |
| Tool Material | Carbide-Tipped |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Tanged |
| Shank Diameter (Inch) | 33/64 |
| Overall Length (Decimal Inch) | 8 |
| Series | 2630 |
| Flute Length (Inch) | 4-3/4 |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0012 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Spiral Type | Regular |
| UNSPSC Code | 23241600 |
| Country of Origin | UNITED STATES |
