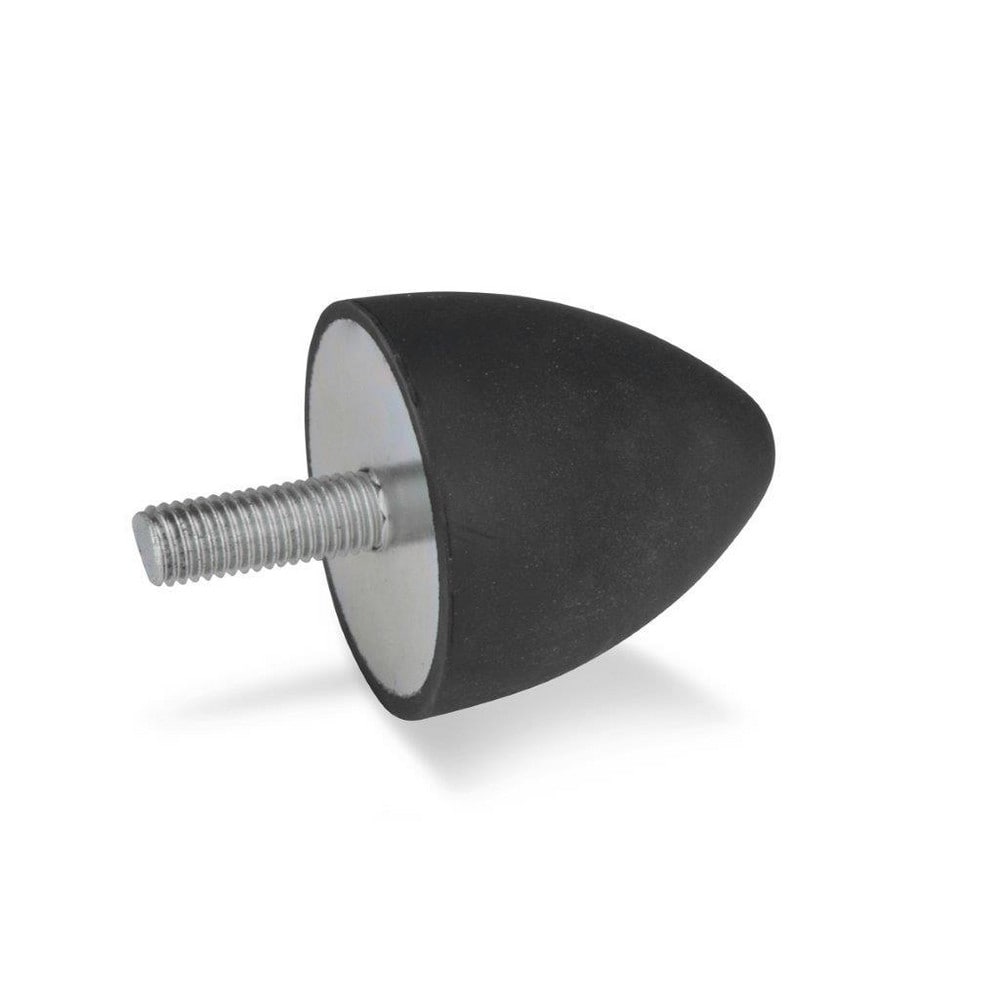

Vibration Isolators; Isolator Type: Plate/Stud; Insert Material: Zinc-Plated Steel; Isolator Material: Natural Rubber; Maximum Load Capacity: 300.00 N; Top Diameter: 35.00; Thread Size: M8x1.25; Overall Width: 35 mm
Item #: 71799944
Brand: J.W. Winco
Model #: 353-35-40-M8-S-55
Product Specifications
| Isolator Type | Plate/Stud |
| Insert Material | Zinc-Plated Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 300.00 N |
| Top Diameter | 35.00 |
| Thread Size | M8x1.25 |
| Overall Width | 35 mm |
| Overall Diameter | 35 mm |
| Thread Length (Decimal Inch) | 0.9100 |
| Deflection | 0.3900 |
| Hardness Rating | Shore 55A |
| Mount Type | Stud |
| Shape | Round |
| Thread Pitch | 1.25 mm |
| Thread Standard | Metric |
| Height (Decimal Inch) | 63 mm |
| UNSPSC Code | 23153130 |
| Country of Origin | Hungary |
