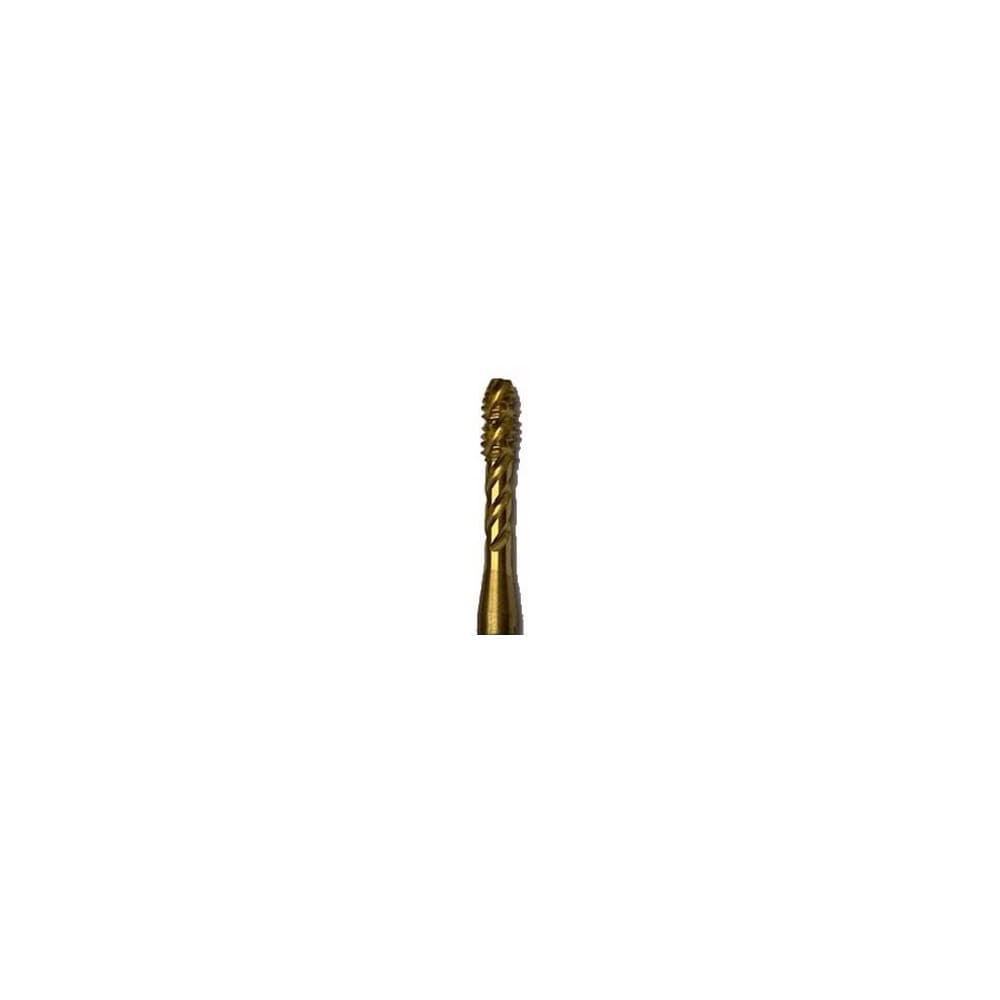

Spiral Flute Tap: UNC, 3 Flute, 2-1/2 - 3-1/2, 2B Class of Fit, Vanadium High-Speed Steel, TiN Finish
Item #: 75780239
Brand: Yamawa
Model #: 384921
Product Specifications
| Thread Size (Inch) | 1/2-13 |
| Thread Standard | UNC |
| Chamfer | Modified Bottoming |
| Material | Vanadium High-Speed Steel |
| Thread Limit | H3 |
| Class Of Fit | 2B |
| Coating/Finish | TiN |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Number Of Flutes | 3 |
| Flute Direction | Right Hand |
| Proprietary Coating/Finish | TiN |
| Primary Workpiece Material | Stainless Steel |
| Threads per Inch | 13 |
| Overall Length (Inch) | 3-3/8 |
| Thread Length (Decimal Inch) | 0.6300 |
| Thread Pitch (Decimal Inch) | 13.0000 |
| Primary Workpiece Material Code | M |
| Shank Diameter (Decimal Inch) | 0.3670 |
| Tapping Depth (Decimal Inch) | 0.6300 |
| Flute Style | Spiral |
| UNSPSC Code | 23241600 |
| Country of Origin | Japan |
