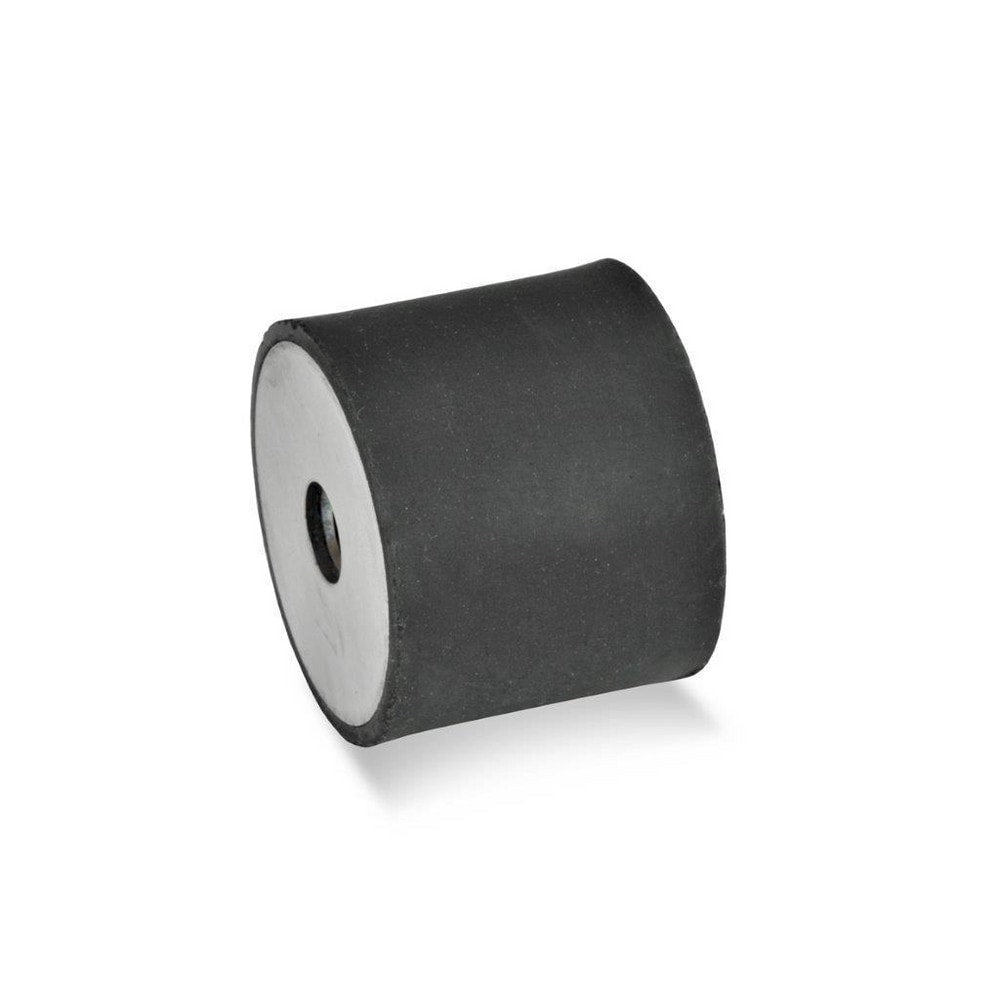

Vibration Isolators; Isolator Type: Plate/Plate; Insert Material: Stainless Steel; Isolator Material: Natural Rubber; Maximum Load Capacity: 19440.00 N; Top Diameter: 125.00; Bottom Diameter: 125; Thread Size: M16x2; Overall Width: 125 mm
Item #: 71856801
Brand: J.W. Winco
Model #: 451-125-75-M16-EE-55
Product Specifications
| Isolator Type | Plate/Plate |
| Insert Material | Stainless Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 19440.00 N |
| Top Diameter | 125.00 |
| Bottom Diameter | 125 |
| Thread Size | M16x2 |
| Overall Width | 125 mm |
| Overall Diameter | 125 mm |
| Deflection | 0.7400 |
| Hardness Rating | Shore 55A |
| Mount Type | Plate |
| Shape | Round |
| Thread Depth | 14.0000 |
| Thread Pitch | 2 mm |
| Thread Standard | Metric |
| Height (Decimal Inch) | 75 mm |
| UNSPSC Code | 23153130 |
| Isolator Type | Plate/Plate |
| Insert Material | Stainless Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 19440.00 N |
| Top Diameter | 125.00 |
| Bottom Diameter | 125 |
| Thread Size | M16x2 |
| Overall Width | 125 mm |
| Overall Diameter | 125 mm |
| Deflection | 0.7400 |
| Hardness Rating | Shore 55A |
| Mount Type | Plate |
| Shape | Round |
| Thread Depth | 14.0000 |
| Thread Pitch | 2 mm |
| Thread Standard | Metric |
| Height (Decimal Inch) | 75 mm |
| UNSPSC Code | 23153130 |
| MSC Part # | 71856801 |
| Mfr Part # | 451-125-75-M16-EE-55 |
| Country of Origin Country of Origin is subject to change | Hungary |
