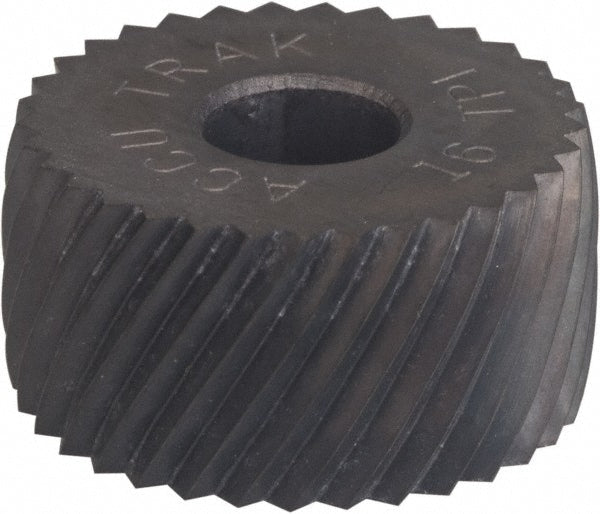

Convex Knurl Wheel: 1-1/4" Dia, 90 ° Tooth Angle, 12 TPI, Diagonal, Cobalt
Item #: 70100490
Brand: Made in USA
Model #: PHRV212FNC
Product Specifications
| Knurl Shape | Convex |
| Tooth Pattern | Diagonal |
| Pattern | Right-Hand Diagonal |
| Form Or Cut Type | Form |
| Material | Cobalt |
| Knurl Diameter (Decimal Inch) | 1.2500 |
| Knurl Diameter (Inch) | 1-1/4 |
| Face Width (Inch) | 1/2 |
| Face Width (Decimal Inch) | 0.5000 |
| Hole Diameter (Inch) | 1/2 |
| Hole Diameter (Decimal Inch) | 0.5000 |
| Pitch System | Circular |
| Pitch (TPI) | 12 |
| Included Tooth Angle | 90 |
| Finish | Ferritic Nitrocarburized |
| Knurl Series | PHV |
| UNSPSC Code | 23242118 |
| Knurl Shape | Convex |
| Tooth Pattern | Diagonal |
| Pattern | Right-Hand Diagonal |
| Form Or Cut Type | Form |
| Material | Cobalt |
| Knurl Diameter (Decimal Inch) | 1.2500 |
| Knurl Diameter (Inch) | 1-1/4 |
| Face Width (Inch) | 1/2 |
| Face Width (Decimal Inch) | 0.5000 |
| Hole Diameter (Inch) | 1/2 |
| Hole Diameter (Decimal Inch) | 0.5000 |
| Pitch System | Circular |
| Pitch (TPI) | 12 |
| Included Tooth Angle | 90 |
| Finish | Ferritic Nitrocarburized |
| Knurl Series | PHV |
| UNSPSC Code | 23242118 |
| MSC Part # | 70100490 |
| Mfr Part # | PHRV212FNC |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
