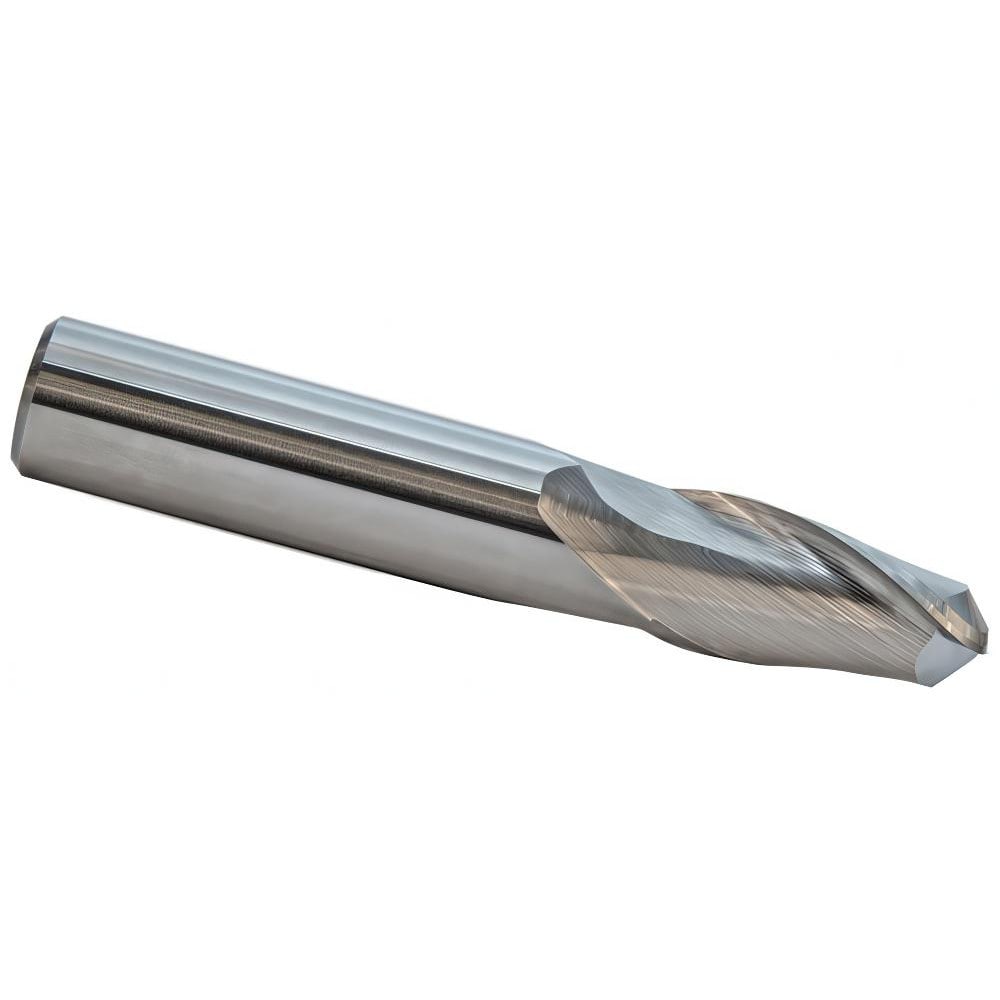

Ball End Mill: 1/8" Dia, 3/8" LOC, 2 Flute, Solid Carbide
Item #: 74747593
Brand: M.A. Ford
Model #: 15012500A
Product Specifications
| Mill Diameter (Inch) | 1/8 |
| Mill Diameter (Decimal Inch) | 0.1250 |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Length of Cut (Inch) | 3/8 |
| Coating/Finish | AlTiN |
| Overall Length (Inch) | 1-1/2 |
| Shank Diameter (Inch) | 1/8 |
| Extended Reach | No |
| Variable Helix | No |
| Variable Index | No |
| Helix Angle | 30 |
| Chipbreaker | No |
| Undercutting | No |
| Length Of Cut Range (Decimal Inch) | 0.2000 - 0.4000 |
| Length Type | Standard |
| Nose Radius (Decimal Inch) | 0.0625 |
| Mill Diameter Tolerance | +0.000/-0.002 in |
| Maximum Helix Angle | 30 |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | 150 |
| Flute Type | Spiral |
| UNSPSC Code | 27112803 |
| Single Or Double End | Single |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3750 |
| Mill Diameter (Inch) | 1/8 |
| Mill Diameter (Decimal Inch) | 0.1250 |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Length of Cut (Inch) | 3/8 |
| Coating/Finish | AlTiN |
| Overall Length (Inch) | 1-1/2 |
| Shank Diameter (Inch) | 1/8 |
| Extended Reach | No |
| Variable Helix | No |
| Variable Index | No |
| Helix Angle | 30 |
| Chipbreaker | No |
| Undercutting | No |
| Length Of Cut Range (Decimal Inch) | 0.2000 - 0.4000 |
| Length Type | Standard |
| Nose Radius (Decimal Inch) | 0.0625 |
| Mill Diameter Tolerance | +0.000/-0.002 in |
| Maximum Helix Angle | 30 |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | 150 |
| Flute Type | Spiral |
| UNSPSC Code | 27112803 |
| Single Or Double End | Single |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3750 |
| MSC Part # | 74747593 |
| Mfr Part # | 15012500A |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
