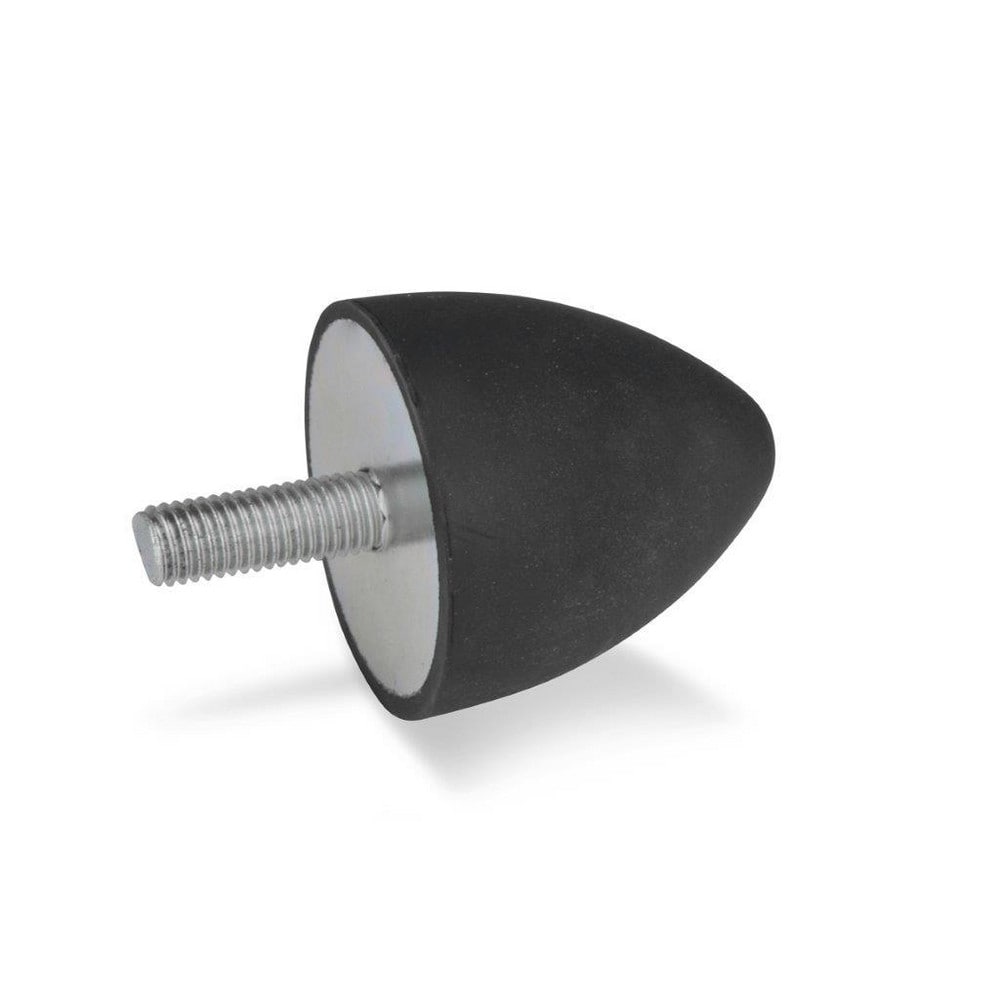

Vibration Isolators; Isolator Type: Plate/Stud; Insert Material: Zinc-Plated Steel; Isolator Material: Natural Rubber; Maximum Load Capacity: 1990.00 N; Top Diameter: 70.00; Thread Size: M12x1.75; Overall Width: 70 mm
Item #: 71800601
Brand: J.W. Winco
Model #: 353-70-58-M12-S-70
Product Specifications
| Isolator Type | Plate/Stud |
| Insert Material | Zinc-Plated Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 1990.00 N |
| Top Diameter | 70.00 |
| Thread Size | M12x1.75 |
| Overall Width | 70 mm |
| Overall Diameter | 70 mm |
| Thread Length (Decimal Inch) | 1.4600 |
| Deflection | 0.5500 |
| Hardness Rating | Shore 70A |
| Mount Type | Stud |
| Shape | Round |
| Thread Pitch | 1.75 mm |
| Thread Standard | Metric |
| Height (Decimal Inch) | 95 mm |
| UNSPSC Code | 23153130 |
| Country of Origin | Hungary |
