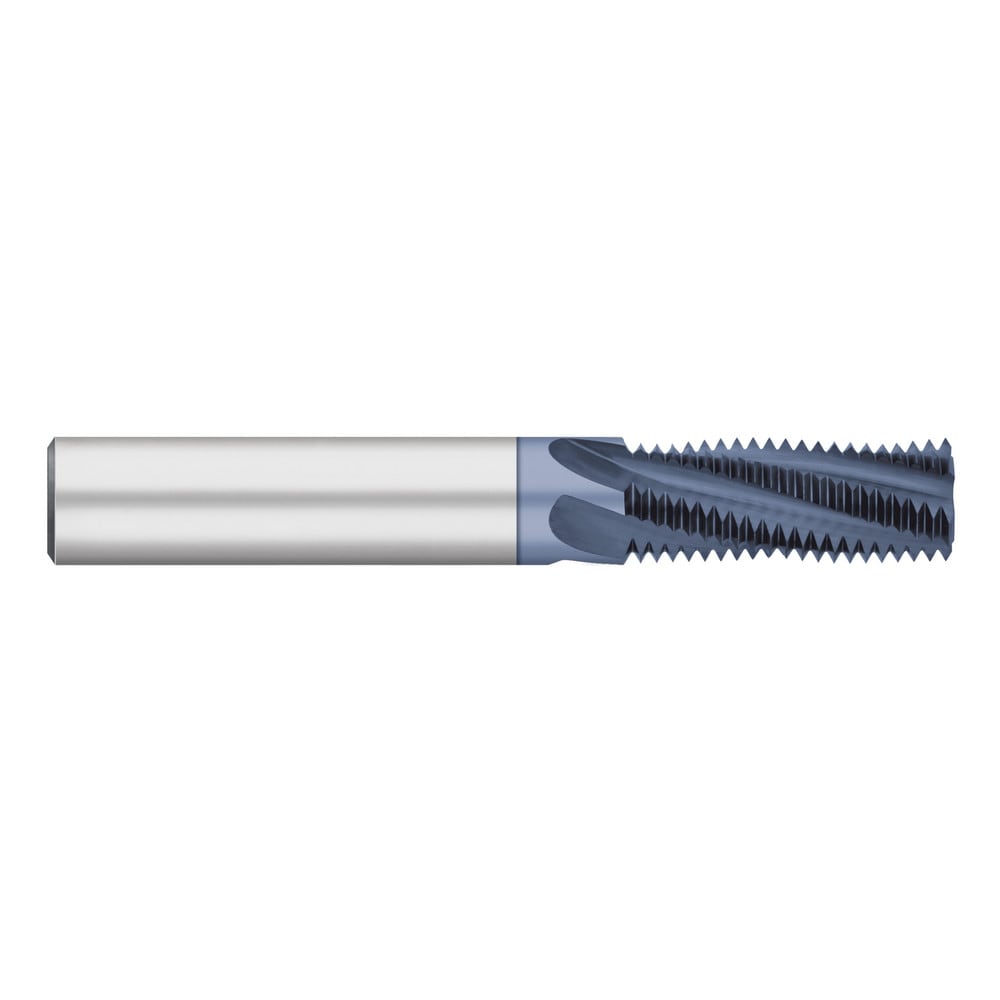

Helical Flute Thread Mill: 1-11-1/2, Internal & External, 5 Flute, 0.7500" Shank Dia, Solid Carbide
Item #: 74244641
Brand: Titan USA
Model #: TC83106
Product Specifications
| Material | Solid Carbide |
| Thread Size (Inch) | 1-11-1/2 |
| Thread Type | Internal; External |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Cutting Diameter (Decimal Inch) | 0.7450 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.3650 |
| Minimum Nominal Diameter (Inch) | #1 |
| Shank Length (Decimal Inch) | 4.0000 |
| Shank Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Thread Standard | NPS |
| Flute Direction | Right Hand |
| Series | Thread Mills - Multi-Form - NPS Pipe Threads |
| Number Of Flutes | 5 |
| Coating/Finish | AlTiN |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 1.3650 |
| Teeth Per Inch | 11-1/2 |
| UNSPSC Code | 23242117 |
| Material | Solid Carbide |
| Thread Size (Inch) | 1-11-1/2 |
| Thread Type | Internal; External |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Cutting Diameter (Decimal Inch) | 0.7450 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.3650 |
| Minimum Nominal Diameter (Inch) | #1 |
| Shank Length (Decimal Inch) | 4.0000 |
| Shank Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Thread Standard | NPS |
| Flute Direction | Right Hand |
| Series | Thread Mills - Multi-Form - NPS Pipe Threads |
| Number Of Flutes | 5 |
| Coating/Finish | AlTiN |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 1.3650 |
| Teeth Per Inch | 11-1/2 |
| UNSPSC Code | 23242117 |
| MSC Part # | 74244641 |
| Mfr Part # | TC83106 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
