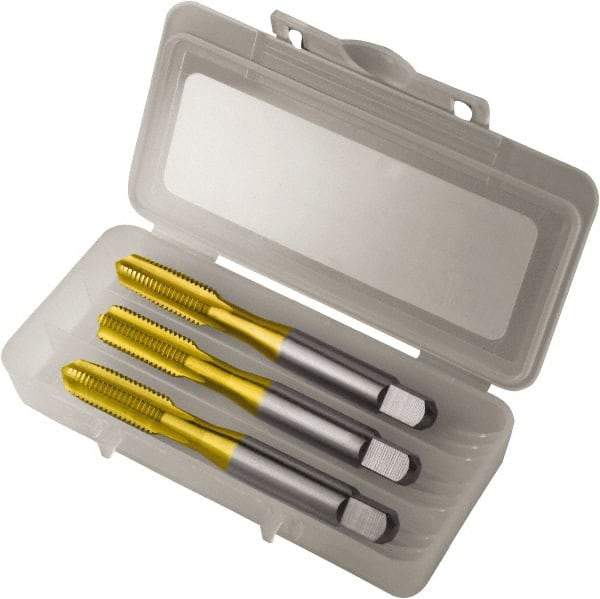

Vermont Tap & Die - M3x0.50 Metric, 4 Flute, Bottoming, Plug & Taper, TiN Finish, High Speed Steel Tap Set - Right Hand Cut, 1-15/16" OAL, 5/8" Thread Length, 6H Class of Fit, Series TN3105M
Item #: 68649235
Brand: Vermont Tap & Die
Model #: 343504
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers have 1 to 2 threads. Plug chamfers have 3 to 5 threads. Taper chamfers have 7 to 10 threads and are typically used as a starter tap. They all can be used for threading blind holes.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and non-ferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Thread Size | M3x0.50 |
| Number of Flutes | 4 |
| Chamfer | Bottoming; Plug; Taper |
| Material | High Speed Steel |
| Finish/Coating | TiN |
| Thread Direction | Right Hand |
| Class of Fit | 6H |
| Thread Limit | D3 |
| Thread Length (Decimal Inch) | 0.3100 |
| Thread Length (Inch) | 5/8 |
| Overall Length (Decimal Inch) | 1.9375 |
| Overall Length (Inch) | 1-15/16 |
| Overall Length (mm) | 49.21 |
| Thread Standard | Metric |
| Series/List | TN3105M |
| Number of Pieces | 3 |
