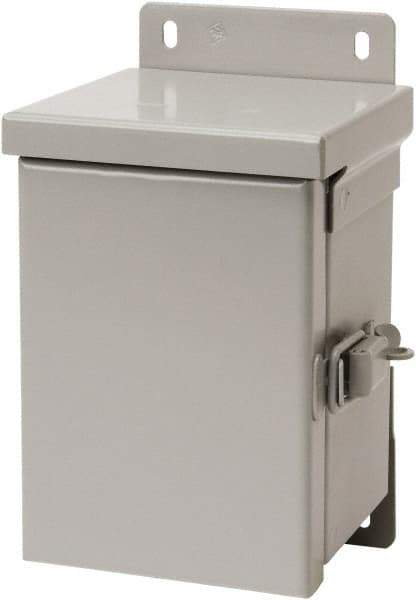

nVent Hoffman - Steel Standard Enclosure Hinge Flat Cover - NEMA 3R, 10" Wide x 12" High x 6" Deep, Watertight
Item #: 68600410
Brand: nVent Hoffman
Model #: A12R106HCR
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Enclosure Type | Standard Enclosure |
| Cover Type | Hinge Flat Cover |
| Enclosure Material | Steel |
| NEMA Rating | 3R |
| Overall Width (Inch) | 10 |
| Overall Width (Decimal Inch) | 10 |
| Overall Height (Inch) | 12 |
| Overall Height (Decimal Inch) | 12 |
| Overall Depth (Inch) | 6 |
| Overall Depth (Decimal Inch) | 6 |
| Cover Color | Gray |
| Finish/Coating | Polyester Powder Coat Finish |
| Material Gauge | 16 |
| Resistance Features | Watertight |
| Includes | Knockouts; Plated Steel Hinge; Provision for Padlocking; Weld Nuts |
| Standards Met | ANSI 61; cUL Listed to CSA C22.2 No. 94 File E27567; IEC 60529; UL File E27567; UL Listed 50; UL Listed 50E |
| Overall Width (mm) | 254 |
| Overall Height (mm) | 305 |
| Overall Depth (mm) | 152 |
