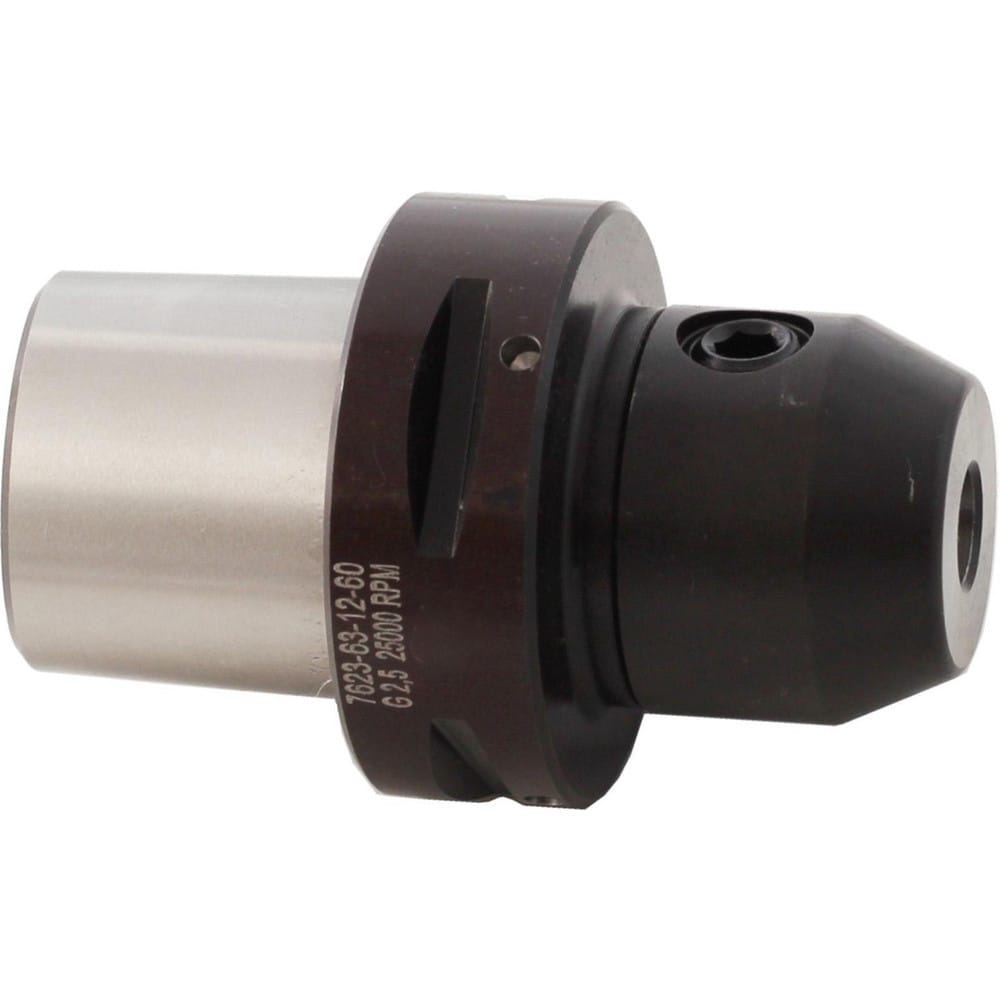

Brand: Bison / Part #: 7-145-320
Item #: 93305910
Brand: Bison
Model #: 7-145-320
Product Specifications
| Shank Type | Straight |
| Modular Connection Size | C3 |
| Overall Length (mm) | 69.8500 |
| Overall Length (Decimal Inch) | 2.7500 |
| Taper Size | C3 |
| Hole Diameter (Mm) ( - 0 Decimals) | 7.9400 |
| Hole Diameter (Decimal Inch) | 0.3125 |
| Hole Diameter (Inch) | 5/16 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 0.8800 |
| Nose Diameter (Mm) ( - 2 Decimals) | 22.35 |
| Projection (Decimal Inch) | 2.0000 |
| Projection (mm) | 50.800 |
| Through Coolant | Yes |
| Maximum RPM | 25000.000 |
| TIR (mm) | 0.0100 |
| TIR (Decimal Inch) | 0.000400 |
| Flange Diameter (mm) | 32.00 |
| Balanced To Rpm | 25000 |
