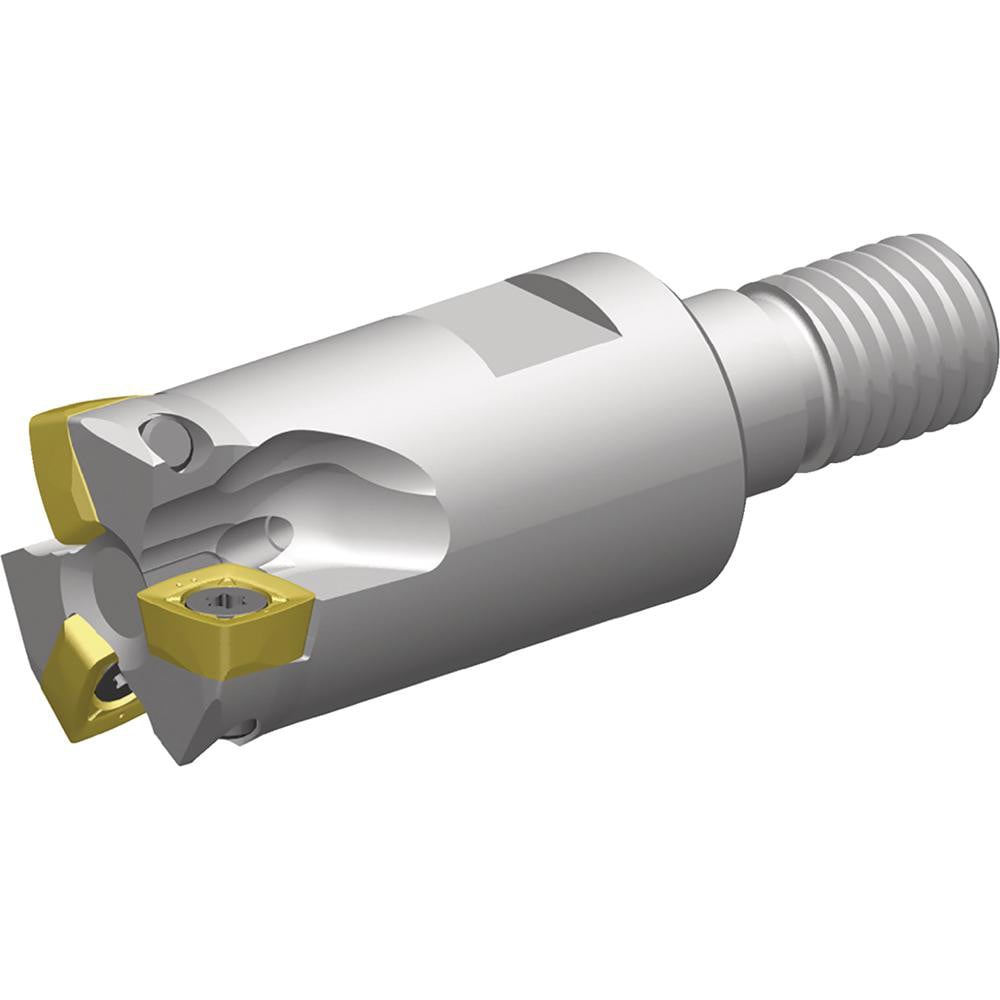

Brand: Widia / Part #: 6597130
Item #: 83141275
Brand: Widia
Model #: 6597130
Product Specifications
| Minimum Cutting Diameter (mm) | 7.01 |
| Maximum Cutting Diameter (mm) | 16.00 |
| Maximum Depth of Cut (mm) | 0.90 |
| Toolholder Style | VXF |
| Shank Type | Modular Connection |
| Shank Diameter (Decimal Inch) | 0.5118 |
| Shank Diameter (mm) | 0.51 |
| Maximum Ramping Angle | 5.90 |
| Compatible Insert Style | XPPT |
| Compatible Insert Size Code | 0703.. |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 2 |
| Overall Length (Decimal Inch) | 42.7000 |
| Overall Length (mm) | 42.70 |
| Series | VXF-07 |
| Flute Type | Straight |
| Maximum RPM | 65000 |
| Modular Connection Size | M8 |
| Head Length (mm) | 25.00 |
| Functional Length (mm) | 25.00 |
| Projection (mm) | 25.00 |
| Tool Application | Plunging; Milling; Ramping |
| Tool Performance | High-Performance |
| Primary Workpiece Material | Universal |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
