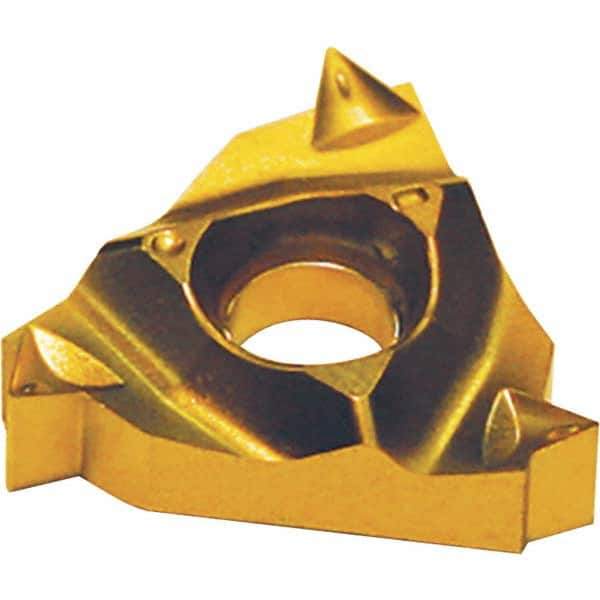

16ER14UNCB AC22A Carbide Laydown Threading Insert AlTiN Finish, RH External UN Thread, 14 TPI, 3/8″ Inscribed Circle
Item #: 68383272
Brand: Tool-Flo
Model #: 5006614AC22A
Product Specifications
| Insert Style | 16ER |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC22R |
| Material Grade | Micrograin |
| Thread Type | External |
| Thread Standard | UN |
| Insert Hand | Right Hand |
| Chipbreaker | CB |
| Coating Process | PVD |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Cutting Edge to Theoretical Edge Length (Decimal Inch) | 0.0500 |
| Face of Insert to Tip Centerline (Decimal Inch) | 0.0600 |
| Number of Teeth Per Side | 1 |
| Teeth Per Inch | 14.00 |
| Coating/Finish | AlTiN |
