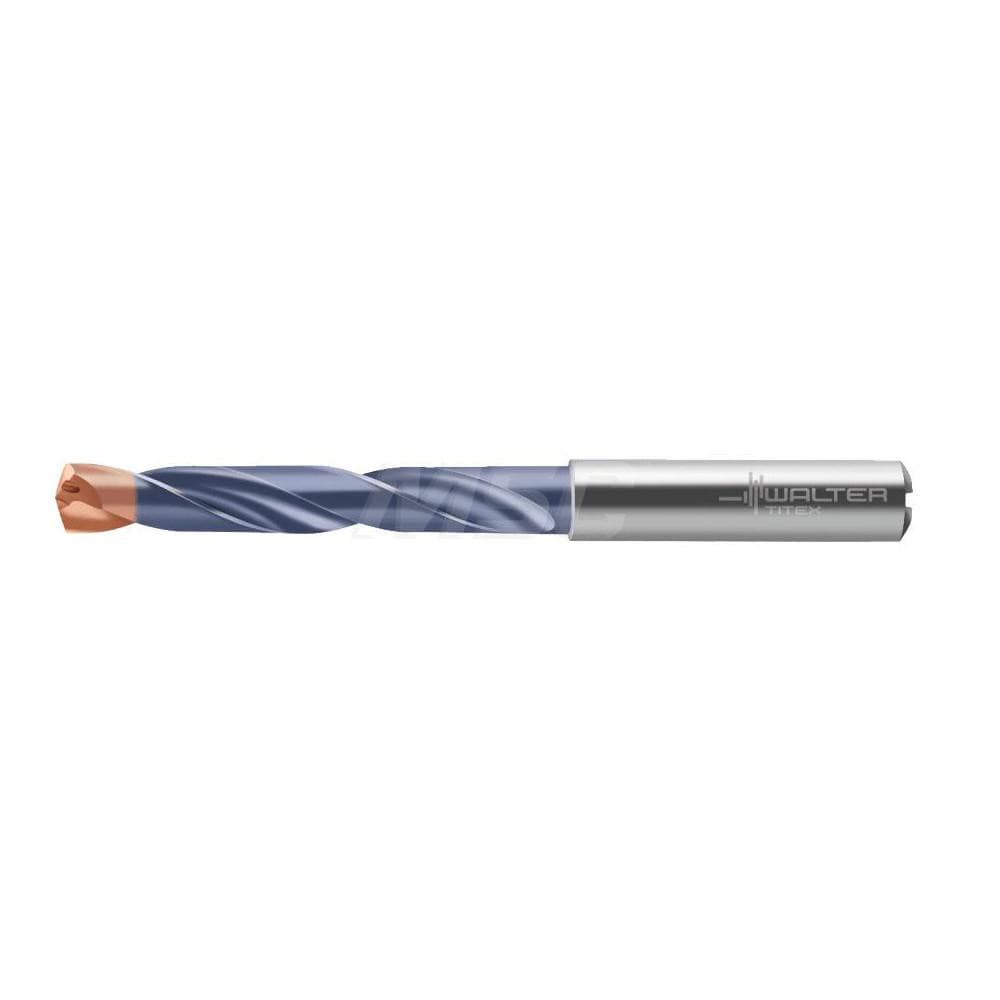

Jobber Drill: 1/4" Dia, 140 deg Point, Solid Carbide
Item #: 92545623
Brand: Walter-Titex
Model #: 5337045
Product Specifications
| Drill Bit Size (Inch) | 1/4 |
| Drill Bit Size (Decimal Inch) | 0.2500 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | Multi-layer |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Primary Workpiece Material | Cast Iron; Steel; Hardened Materials |
| Coolant Through | Yes |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Overall Length (mm) | 91.00 |
| Overall Length (Decimal Inch) | 3.5827 |
| Spiral Type | Regular |
| Flute Length (mm) | 53.00 |
| Flute Length (Decimal Inch) | 2.0866 |
| Proprietary Coating/Finish | DPL (TiAlN (AlCrN)) |
| Series | A3389DPL |
| Tool Application | Blind Hole; Stack Drilling |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 8 |
| Maximum Drilling Depth (Decimal Inch) | 1.6929 |
| Maximum Drilling Depth (mm) | 43.00 |
| Shank Length (mm) | 36 |
| Shank Length (Decimal Inch) | 1.4173 |
| Drill Point Length (mm) | 1.16 |
| Drill Point Length (Decimal Inch) | 0.0455 |
| Drill Bit Diameter Tolerance | m7 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Tool Performance | High Performance |
| Standards | ISO; ANSI |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.2500 - 0.3000 |
| Material Grade | K30F |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| Country of Origin | UNITED STATES |
