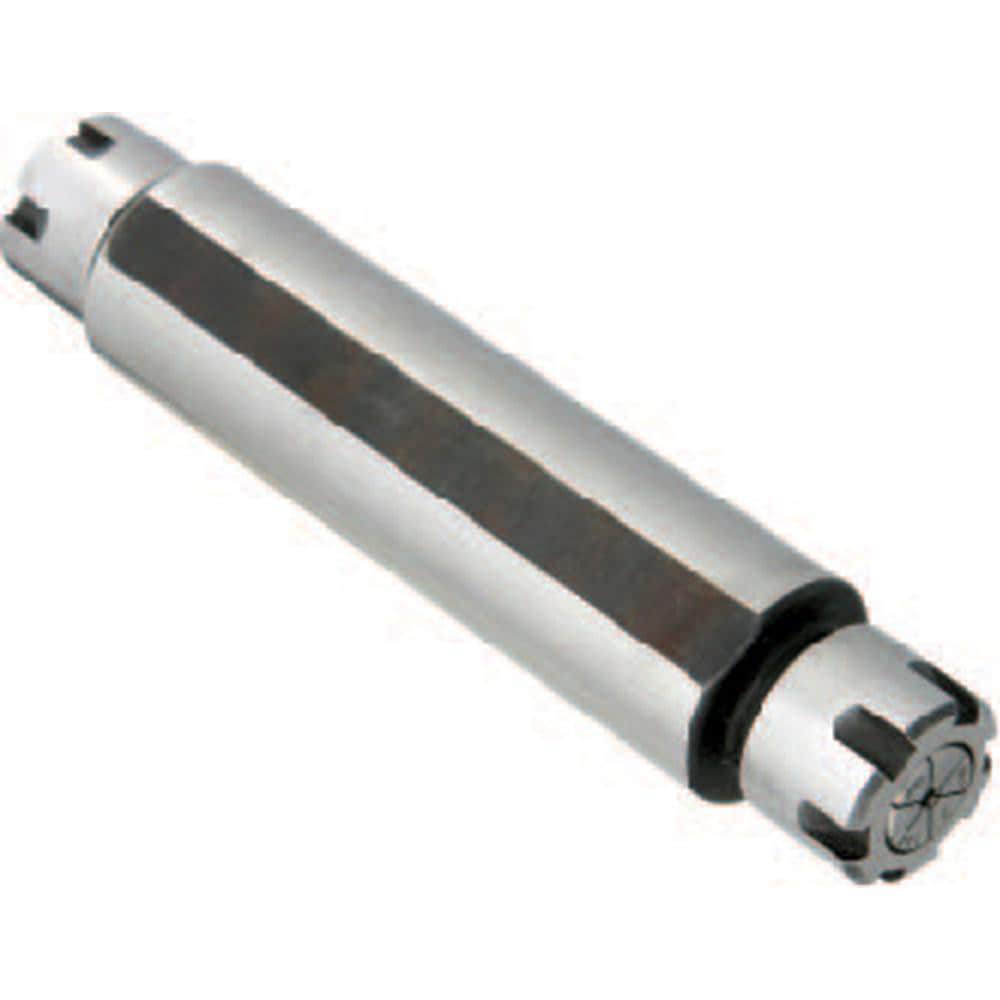

Collet Chuck: 0.2810 to 0.2810" Capacity, ER Collet, Straight Shank -
Item #: 89248835
Brand: Techniks
Model #: 04801-DE
Product Specifications
| Collet System | ER |
| Collet Series | ER11 |
| Shank Type | Straight |
| Projection (mm) | 28.00 |
| Through Coolant | No |
| Minimum Collet Capacity (Decimal Inch) | 0.2810 |
| Maximum Collet Capacity (Decimal Inch) | 0.2810 |
| Overall Length (mm) | 65 |
| Nose Diameter (Mm) ( - 2 Decimals) | 16 |
| Type | STRSHK |
| UNSPSC Code | 27112808 |
| Thread Size (Inch) | 1/4-18 |
| Country of Origin | Taiwan |
