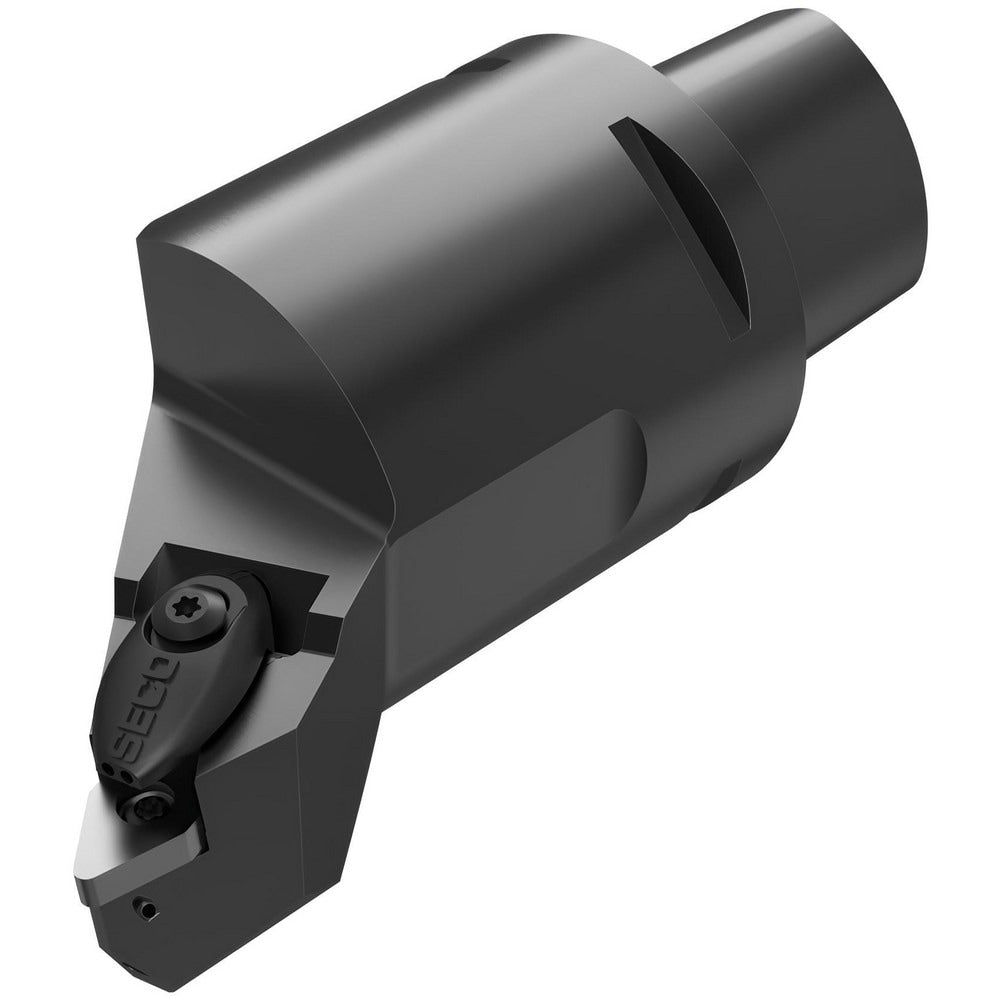

Modular Turning & Profiling Cutting Unit Heads; System Size: C5; Cutting Direction: Left Hand; Compatible Insert Style: DN..; Compatible Insert Size Code: 43..
Item #: 82804360
Brand: Seco
Model #: 10189796
Product Specifications
| System Size | C5 |
| Cutting Direction | Left Hand |
| Compatible Insert Style | DN.. |
| Compatible Insert Size Code | 43.. |
| Internal or External | External |
| Insert Holding Method | Clamp |
| Vibration Dampening | No |
| Center to Cutting Edge (Decimal Inch) | 0.0000 |
| Series | DDMNL |
| Axial Rake Angle | -8.44 |
| Radial Rake Angle (Degrees) | -5.45 |
| Head Connection Size | C5 |
| Cutting Tool Application | Profiling; Turning |
| Standards | ISO; ANSI |
| Coolant Through | Yes |
| Head Length Projection (Decimal Inch) | 4.5280 |
| Maximum Hole Depth (Decimal Inch) | 5.9060 |
| Minimum Hole Diameter (Decimal Inch) | 4.9210 |
| UNSPSC Code | 23242100 |
| Country of Origin | India |
