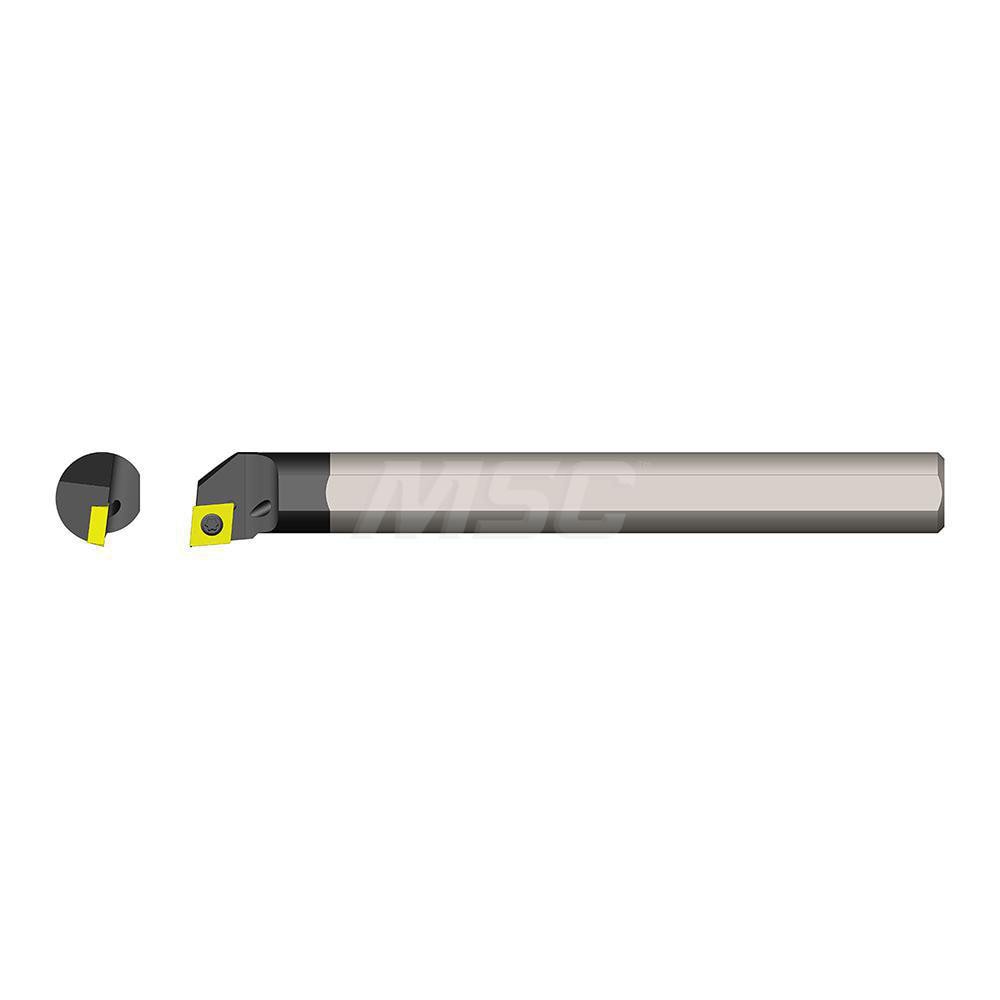

Indexable Boring Bar: .75X7 CARBIDE SHANK, 0.9200" Min Bore, 95 deg Lead, Solid Carbide
Item #: 82144403
Brand: Ultra-Dex
Model #: 920-000-309
Product Specifications
| Minimum Bore Diameter (Decimal Inch) | 0.9200 |
| Tool Material | Solid Carbide |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 7.0000 |
| Overall Length (Inch) | 7 |
| Compatible Insert Size Code | 32.51 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Rake | Positive |
| Lead Angle | 95 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| UNSPSC Code | 23241601 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
