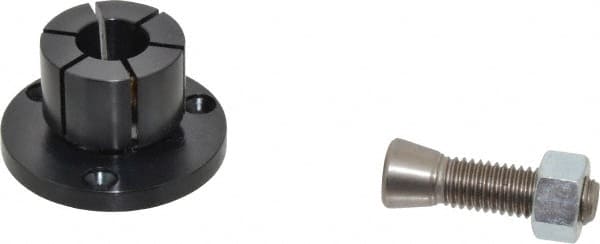

0.9 to 1.39″ Expansion Diam, 5,900 Lb Holding Force, 8-32 Mounting Screw, 1/2-13 Center Screw, Mild Steel ID Expansion Clamps 2.205″ Flange Diam, 1/4″ Flange Thickness, 1.79″ Mount Hole Diam, 3 Mount Holes, 1-1/4″ Overall Height, 120 Ft/Lb Torque
Item #: 68080993
Brand: Mitee-Bite
Model #: 31250
Product Specifications
| Flange Diameter (Decimal Inch) | 2.205 in |
| Maximum Expansion Diameter (Decimal Inch) | 1.3900 |
| Minimum Expansion Diameter (Decimal Inch) | 0.9000 |
| Holding Force (Lb.) | 5900.00; 5900 lb |
| Center Screw Thread Size | 1/2-13 |
| Maximum Expansion Diameter | 1.39 in |
| Mounting Screw Thread Size | 8-32 |
| Minimum Expansion Diameter | 0.9 in |
| Material | Mild Steel |
| Flange Thickness | 0.25 in |
| Expansion Height | 0.81 in |
| Height Above Flange | 1 in |
| Mount Hole Diameter (Decimal Inch) | 1.7900 |
| Center Screw Thread Size | 1/2-13 in |
| Mount Hole Diameter | 1.79 in |
| Number Of Mount Holes | 3 |
| Thread Length Below Base | 0.71 in |
| Features | For Additional Rigidity Install Recessed Dowel Pin into Flange |
| Flange Thickness (Decimal Inch) | 0.2500 |
| Expansion Height (Decimal Inch) | 0.8100 |
| Height Above Flange (Decimal Inch) | 1.0000 |
| Overall Height (mm) | 1.25 in |
| Overall Height (Decimal Inch) | 1.25 in; 1.2500 |
| Number of Mount Holes | 3 |
| Thread Length Below Base (Decimal Inch) | 0.7100 |
| Torque (Ft/Lb) | 120.00 |
