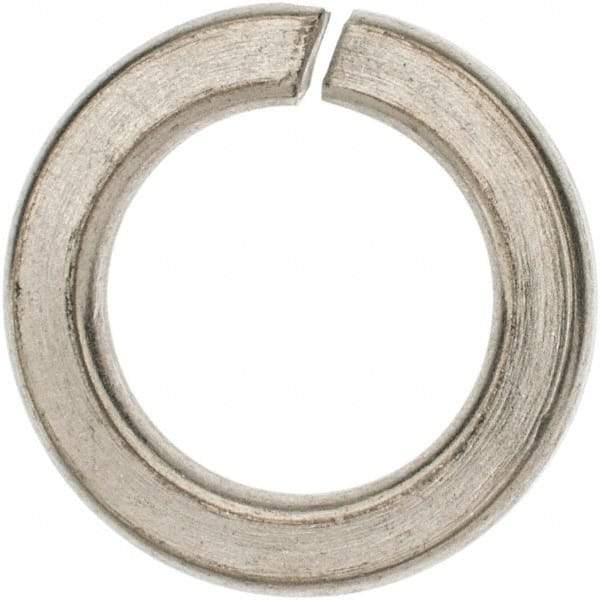

Value Collection - M18, 18.2mm ID, 29.4mm OD, 3.5mm Thick Split Lock Washer - 18-8 Austenitic Grade A2 Stainless Steel, 18.2mm Min ID, 19mm Max ID
Item #: 68025923
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Split lock washers have a split at one point along their outer diameter, which creates compression and tension to lock the nut in place. Split lock washers are used in high-vibration applications.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| System of Measurement | Metric |
| Type | Split Lock Washer |
| Screw Size | M18 |
| Material | Stainless Steel |
| Material Grade | 18-8; Austenitic Grade A2 |
| Inside Diameter (mm) | 18.20 |
| Outside Diameter (mm) | 29.40 |
| Thickness (mm) | 3.50 |
| Minimum Inside Diameter (mm) | 18.20 |
| Maximum Inside Diameter (mm) | 19.00 |
| Minimum Outside Diameter (mm) | 29.40 |
| Maximum Outside Diameter (mm) | 29.40 |
| Military Specification | Does Not Meet Military Specifications |
| Fastener Standard | DIN 127 |
