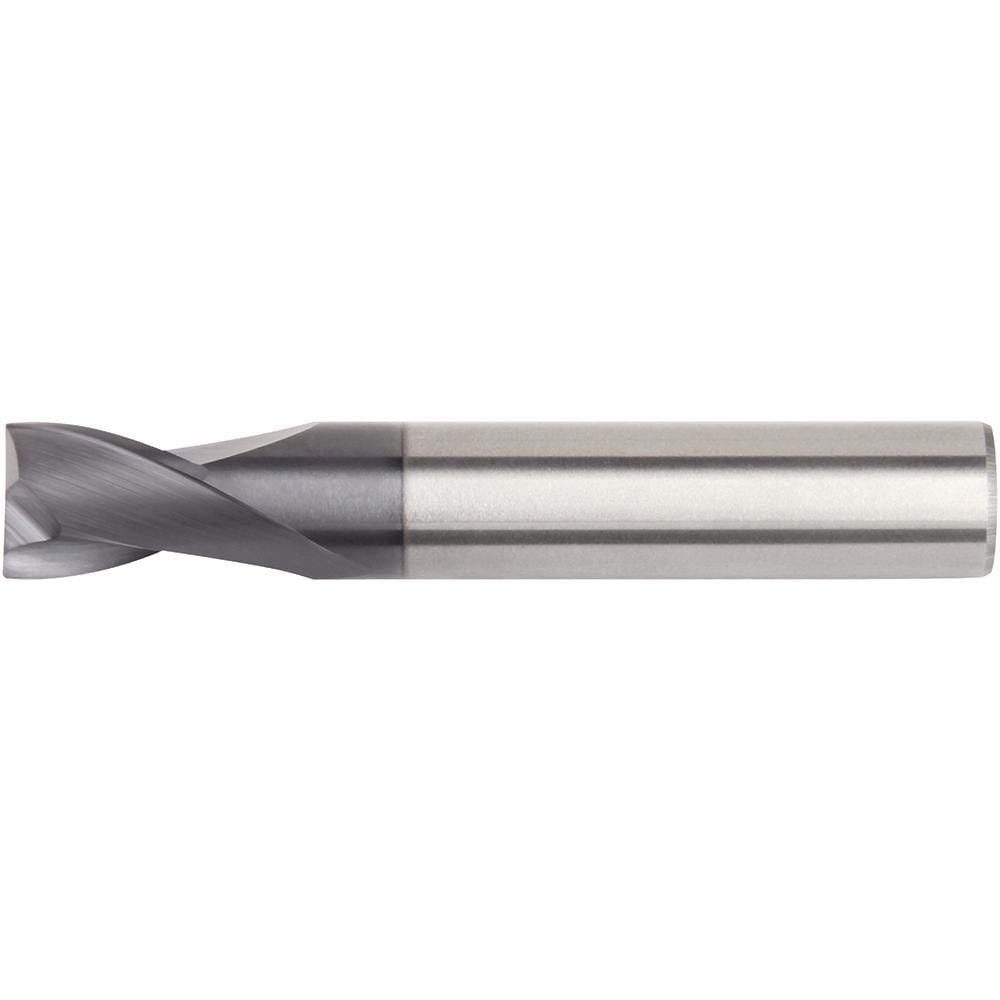

Square End Mill: 5/8" Dia, 3" LOC, 2 Flute, Solid Carbide
Item #: 34035550
Brand: Widia
Model #: 5872898
Product Specifications
| Mill Diameter (Decimal Inch) | 0.6250 |
| Mill Diameter (Inch) | 5/8 |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 3.0000 |
| Length of Cut (Inch) | 3 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (Inch) | 6 |
| Single Or Double End | Single |
| Coating/Finish Family | TiAlN |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 30 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material | Aluminum & Non-Ferrous; High-Temp Alloy; Stainless Steel; Cast Iron; Steel; Hardened Materials |
| Secondary Workpiece Material Code | P; S; H; K; M; N |
| Coating/Finish | TiAlN |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Helical |
| Shank Type | Straight |
| Material Grade | TiAlN |
| Length Type | Regular |
| Neck Length (Decimal Inch) | 3.0000 |
| Neck Diameter (Decimal Inch) | 0.6250 |
| Series | I2S |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
