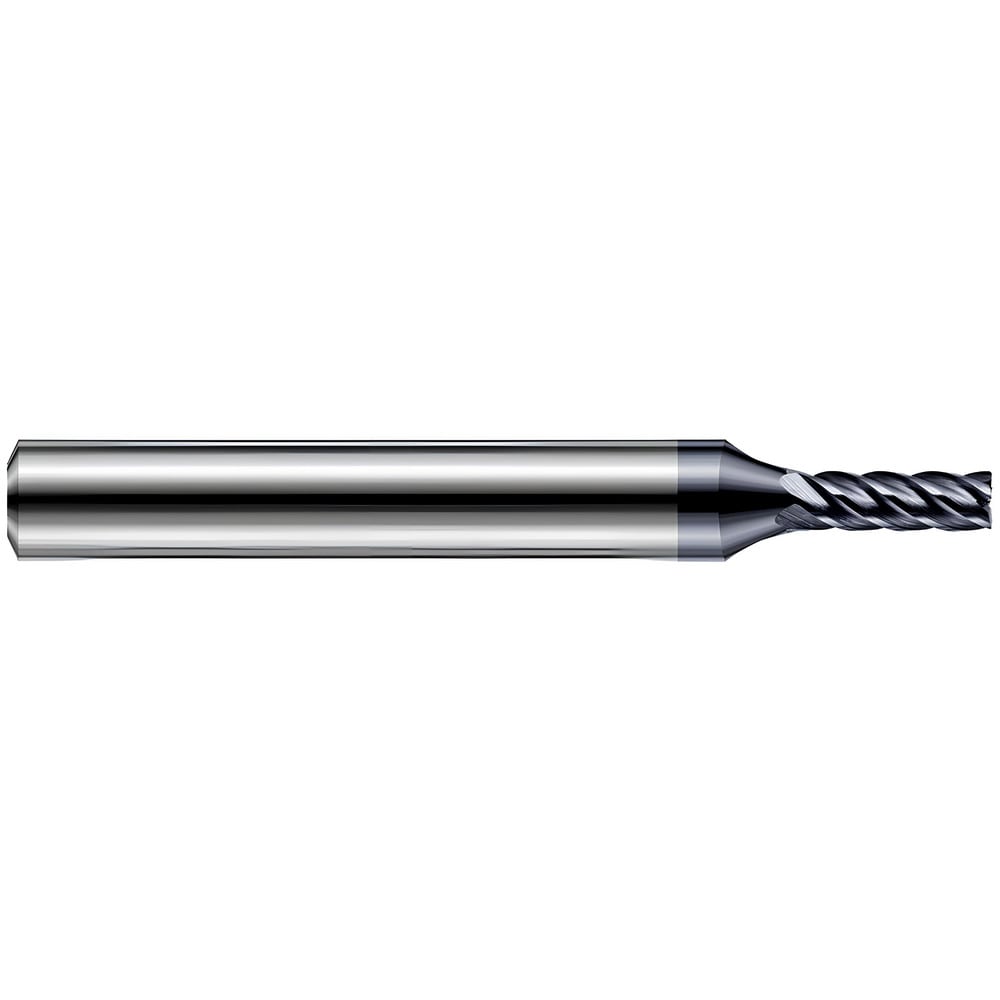

Corner Radius End Mill: 0.0620" Dia, 0.354" LOC, 0.0100" Radius, 5 Flute, Solid Carbide
Item #: 31695414
Brand: Harvey Tool
Model #: 852162-C6
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0620 |
| Number Of Flutes | 5 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | AlTiN |
| Overall Length (Inch) | 2-1/2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0100 |
| Variable Index | No |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Close |
| Overall Length (Decimal Inch) | 2.5 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1860 |
| Length Type | Regular |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/4 |
| Corner Radius Tolerance | 0.0010 to -0.0010 in |
| Mill Diameter Tolerance | 0.0005/-0.0005 in |
| Shank Diameter Tolerance | h6 |
| Overall Length Tolerance | 0.0100/-0.0000 in |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; H; K; M |
| Series | End Mills for Hardened Steels - Corner Radius - For Steels Up to 55 Rc; Material Specific End Mills |
| Material Application | Stainless Steel; Cast Iron; Hard Alloy; Steel |
| Coating Classification | PVD |
| For Use With. | High Precision Toolholders |
