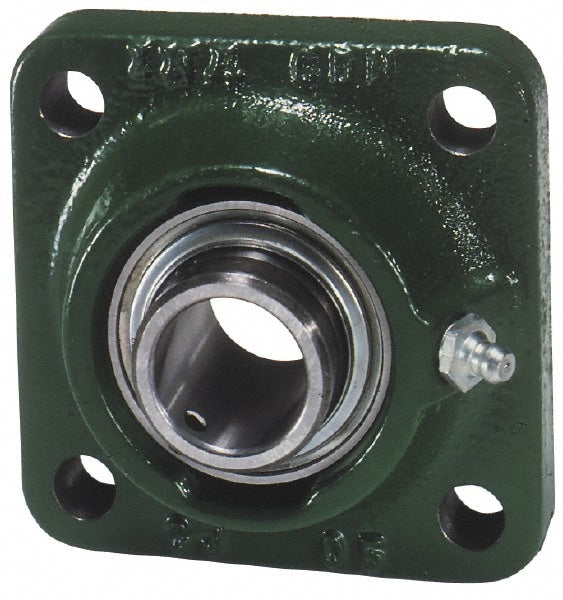

45mm ID, 5.4134" OAL x 2.2323" OAH 4-Bolt Lock Col Econ Seal Met
Item #: 57131625
Brand: INA Bearing
Model #: PCJ45
Product Specifications
| Type | 4Bolt Lock Col Econ Seal Met |
| Inside Diameter (mm) | 45.0000 |
| Inside Diameter (Decimal Inch) | 1.7717 |
| Overall Length (Decimal Inch) | 5.4134 |
| Overall Height (Decimal Inch) | 2.2323 |
| Static Load Capacity | 4600.0 |
| Dynamic Load Capacity (Lb.) | 7400 |
| Distance Between Base And Center (mm) | 137.5000 |
| Distance Between Base And Center (Decimal Inch) | 5.4130 |
| UNSPSC Code | 31171500 |
| Shipping Weight (kg) | 2.400 |
| Flange Thickness (Decimal Inch) | 0.5709 |
| Type | 4Bolt Lock Col Econ Seal Met |
| Inside Diameter (mm) | 45.0000 |
| Inside Diameter (Decimal Inch) | 1.7717 |
| Overall Length (Decimal Inch) | 5.4134 |
| Overall Height (Decimal Inch) | 2.2323 |
| Static Load Capacity | 4600.0 |
| Dynamic Load Capacity (Lb.) | 7400 |
| Distance Between Base And Center (mm) | 137.5000 |
| Distance Between Base And Center (Decimal Inch) | 5.4130 |
| UNSPSC Code | 31171500 |
| Shipping Weight (kg) | 2.400 |
| Flange Thickness (Decimal Inch) | 0.5709 |
| MSC Part # | 57131625 |
| Mfr Part # | PCJ45 |
