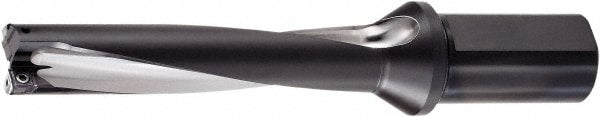

Indexable Insert Drill: P2D2450FS32M07, 24.50 mm Max Dia, 49.00 mm Max Depth, 2xD, 32.00 mm Shank Dia
Item #: 55896773
Brand: OSG
Model #: 7803136
Product Specifications
| Compatible Drill Style | P2D |
| Maximum Drill Diameter (mm) | 24.50 |
| Maximum Drill Depth (mm) | 49.00 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (mm) | 32.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 0.00 to 50.00 |
| Tool Material | Steel |
| Compatible Insert Style | XCMT |
| Compatible Insert Size Code | 073106 |
| Drill Depth by Diameter Ratio | 2xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | 78031 |
| Flute Length (mm) | 64.00 |
| Body Length | 72.00 |
| Shank Length (mm) | 60.00 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 7.11x7.11 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | XCMT073106 |
| Insert Lock Screw | 7808136 |
| Coolant Through | Yes |
| Compatible Drill Style | P2D |
| Maximum Drill Diameter (mm) | 24.50 |
| Maximum Drill Depth (mm) | 49.00 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (mm) | 32.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 0.00 to 50.00 |
| Tool Material | Steel |
| Compatible Insert Style | XCMT |
| Compatible Insert Size Code | 073106 |
| Drill Depth by Diameter Ratio | 2xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | 78031 |
| Flute Length (mm) | 64.00 |
| Body Length | 72.00 |
| Shank Length (mm) | 60.00 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 7.11x7.11 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | XCMT073106 |
| Insert Lock Screw | 7808136 |
| Coolant Through | Yes |
| MSC Part # | 55896773 |
| Mfr Part # | 7803136 |
| Country of Origin Country of Origin is subject to change | Japan |
