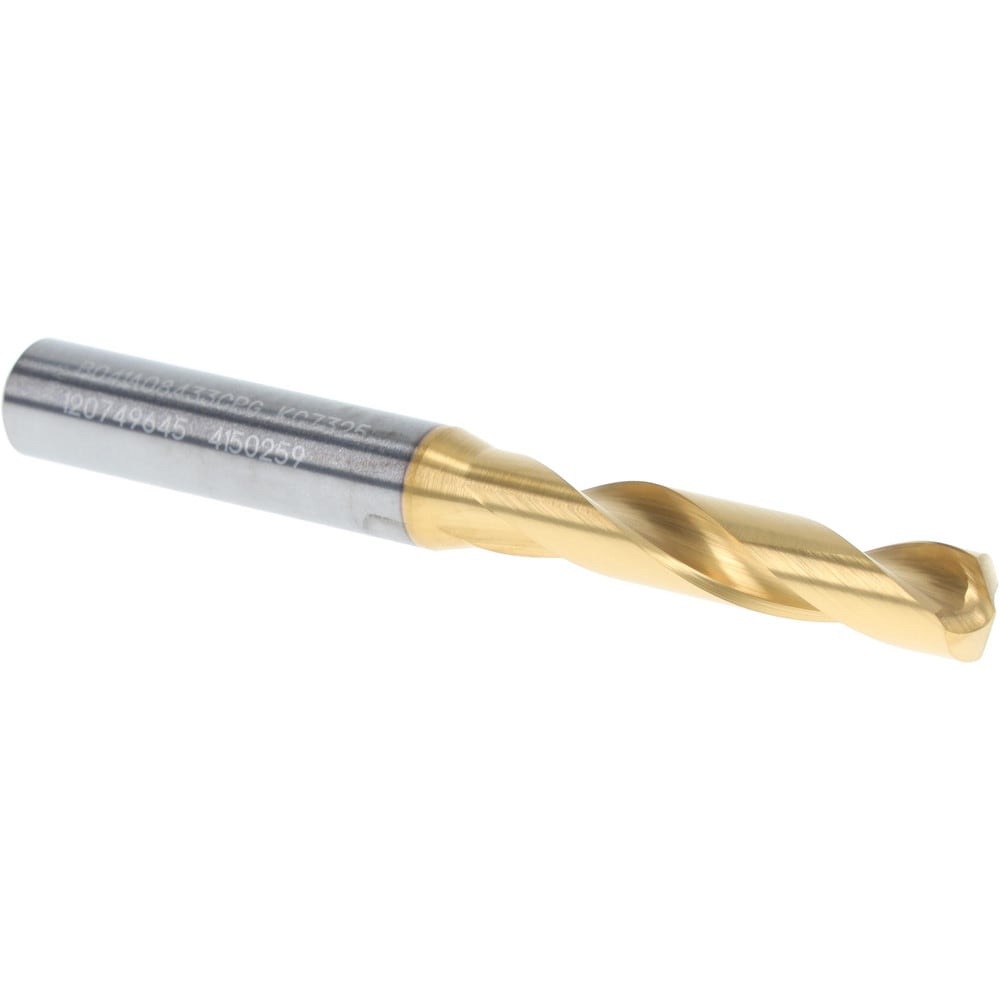

Screw Machine Length Drill Bit: Letter Q, 140 deg Point, Solid Carbide
Item #: 58510660
Brand: Kennametal
Model #: 4150259
Product Specifications
| Drill Bit Size (Letter) | Q |
| Drill Bit Size (Decimal Inch) | 0.3320 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiN |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 140 |
| Coolant Through | No |
| Point Type | Standard |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Overall Length (mm) | 89.00 |
| Overall Length (Decimal Inch) | 3.5039 |
| Shank Diameter (mm) | 10.00 |
| Series | B041A-CPG |
| Web Configuration | Tapered |
| Proprietary Coating/Finish | TiN (Tip) |
| Drill Length Type | Stub |
| Maximum Drilling Depth (Decimal Inch) | 1.3780 |
| Maximum Drilling Depth (mm) | 35.00 |
| Shank Length (Decimal Inch) | 1.5748 |
| Shank Length (mm) | 40.00 |
| Drill Point Length (mm) | 1.43 |
| Drill Point Length (Decimal Inch) | 0.0563 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | -0.0006 to 0.0000 in; -0.015 to 0.000 mm |
| Flute Length (Decimal Inch) | 1.8504 |
| Flute Length (mm) | 47.00 |
| Drill Bit Size Range (Decimal Inch) | 0.3000 to 0.3500 |
| Specification Number | DIN 6537K |
| Specification Designation | DIN |
| UNSPSC Code | 23241635 |
| Drill Bit Size (Letter) | Q |
| Drill Bit Size (Decimal Inch) | 0.3320 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiN |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 140 |
| Coolant Through | No |
| Point Type | Standard |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Overall Length (mm) | 89.00 |
| Overall Length (Decimal Inch) | 3.5039 |
| Shank Diameter (mm) | 10.00 |
| Series | B041A-CPG |
| Web Configuration | Tapered |
| Proprietary Coating/Finish | TiN (Tip) |
| Drill Length Type | Stub |
| Maximum Drilling Depth (Decimal Inch) | 1.3780 |
| Maximum Drilling Depth (mm) | 35.00 |
| Shank Length (Decimal Inch) | 1.5748 |
| Shank Length (mm) | 40.00 |
| Drill Point Length (mm) | 1.43 |
| Drill Point Length (Decimal Inch) | 0.0563 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | -0.0006 to 0.0000 in; -0.015 to 0.000 mm |
| Flute Length (Decimal Inch) | 1.8504 |
| Flute Length (mm) | 47.00 |
| Drill Bit Size Range (Decimal Inch) | 0.3000 to 0.3500 |
| Specification Number | DIN 6537K |
| Specification Designation | DIN |
| UNSPSC Code | 23241635 |
| MSC Part # | 58510660 |
| Mfr Part # | 4150259 |
| Country of Origin Country of Origin is subject to change | VARIOUS |
