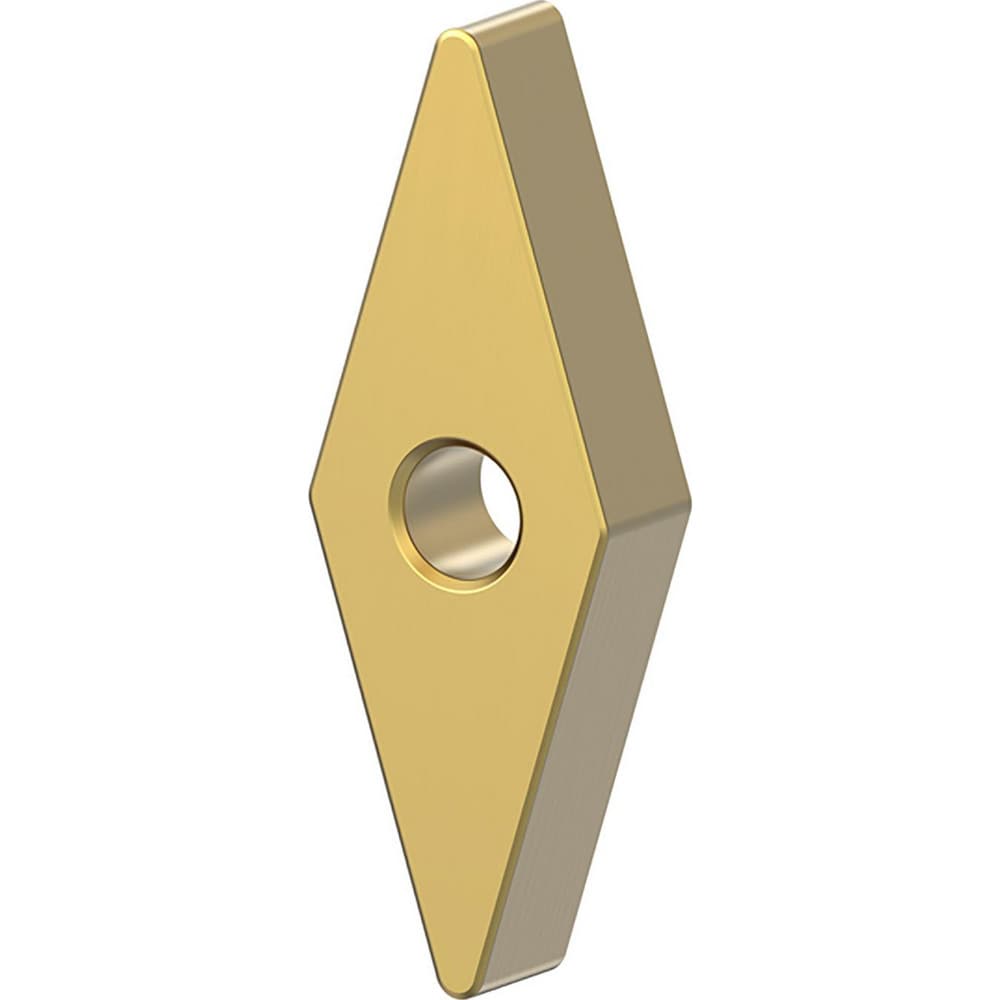

Turning Insert: VNGA331T0420 KYHK15B, Ceramic
Item #: 26179705
Brand: Kennametal
Model #: 6770690
Product Specifications
| ANSI Insert Code | VNGA331 |
| ISO Insert Code | VNGA160404 |
| Relief Angle | 0 |
| Insert Style | VNGA |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 35 |
| Manufacturer Grade | KYHK15B |
| Coating/Finish | AlTiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | KENLOC |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | Ceramic |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Chip Breaker Operation | Flat Top |
| Side Clearance | Negative |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Maximum Depth of Cut (Decimal Inch) | 0.4354 |
| Insert Holding Method | Pin; Clamp |
| Width (Inch) | 3/8 |
| Clearance Code | N |
| Tolerance Code | G |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 1.3076 |
| Primary Workpiece Material | Hard Material; Cast Iron; Superalloys & Titanium |
| Primary Workpiece Material Code | S; H; K |
| Iso Code | VNGA160404T01020 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 6770690 |
| Material Grade | Alumina TiCN |
| Coating Classification | PVD |
| Chip Breaker | Flat Top |
| Rake Angle | 0 |
| Cutting Edge Style | T-Land |
| Industry Standard Number | VNGA331T0420 |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Back Boring; Facing; Turning; Back Turning; Boring |
| ANSI Size Code | 331 |
| ISO Size Code | 160404 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 331 |
