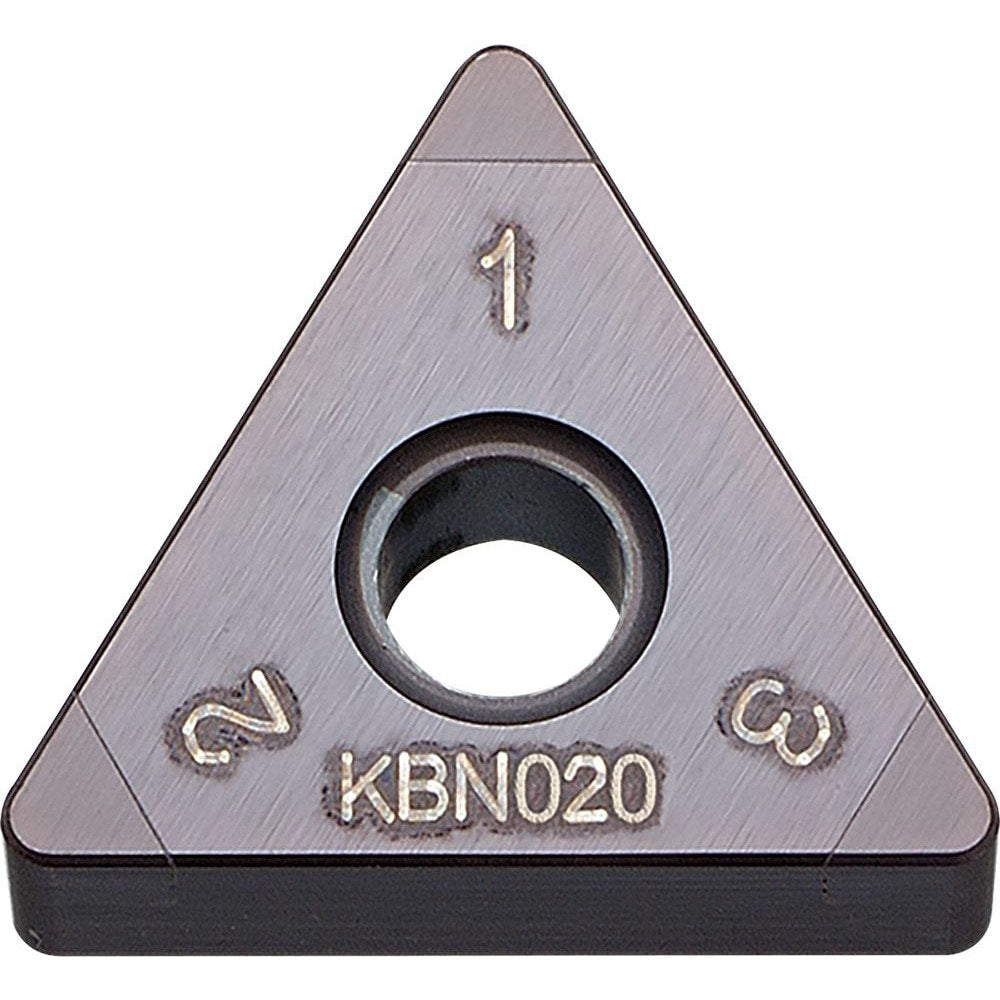

Turning Insert: TNGA332S01630MEHKBN020, CBN
Item #: 72562200
Brand: Kyocera
Model #: TFC00061
Product Specifications
| ANSI Insert Code | TNGA332 |
| ISO Insert Code | TNGA160408 |
| Relief Angle | 0 |
| Insert Style | TNGA |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 60 |
| Manufacturer Grade | KBN020 |
| Coating/Finish | MEGACOAT |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | ISO Insert |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | CBN |
| Insert Shape | T - Triangle |
| Chip Breaker Operation | No Chip Breaker |
| Grade Characteristics | Hardened Materials (H) - High Wear-Resistance |
| Side Clearance | Negative |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.81 |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | N |
| Tolerance Code | G |
| Coating Process | PVD |
| Rake | Negative |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Secondary Workpiece Material Code | None |
| Iso Code | TNGA160408S04030MEH |
| Manufacturers Catalog Number | TNGA332S01630MEHKBN020 |
| Chip Breaker | No Chip Breaker |
| Multi-Use Tool | Yes |
| Multi-Use Application | External Turning; Chamfering; Facing; Copying; Boring |
| Tip Length (Decimal Inch) | 0.0945 |
| Tip Length (mm) | 2.40 |
| ANSI Size Code | 332 |
| ISO Size Code | 160408 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 332 |
| ANSI Insert Code | TNGA332 |
| ISO Insert Code | TNGA160408 |
| Relief Angle | 0 |
| Insert Style | TNGA |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 60 |
| Manufacturer Grade | KBN020 |
| Coating/Finish | MEGACOAT |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | ISO Insert |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | CBN |
| Insert Shape | T - Triangle |
| Chip Breaker Operation | No Chip Breaker |
| Grade Characteristics | Hardened Materials (H) - High Wear-Resistance |
| Side Clearance | Negative |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.81 |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | N |
| Tolerance Code | G |
| Coating Process | PVD |
| Rake | Negative |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Secondary Workpiece Material Code | None |
| Iso Code | TNGA160408S04030MEH |
| Manufacturers Catalog Number | TNGA332S01630MEHKBN020 |
| Chip Breaker | No Chip Breaker |
| Multi-Use Tool | Yes |
| Multi-Use Application | External Turning; Chamfering; Facing; Copying; Boring |
| Tip Length (Decimal Inch) | 0.0945 |
| Tip Length (mm) | 2.40 |
| ANSI Size Code | 332 |
| ISO Size Code | 160408 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 332 |
| MSC Part # | 72562200 |
| Mfr Part # | TFC00061 |
| Country of Origin Country of Origin is subject to change | VARIOUS |
