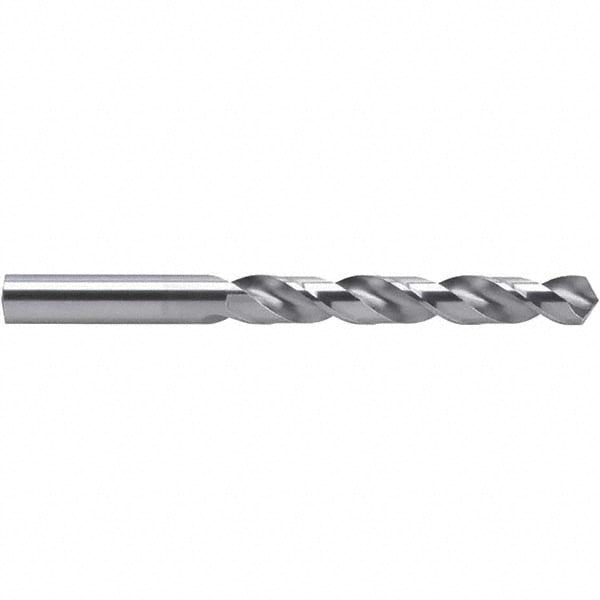

Jobber Drill: 10.10 mm Dia, 118 deg Point, Cobalt
Item #: 55075576
Brand: Guhring
Model #: 9055230101000
Product Specifications
| Drill Bit Size (mm) | 10.10 |
| Drill Bit Size (Decimal Inch) | 0.3976 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | Straw |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | 4 Facet |
| Primary Workpiece Material | Aluminum & Non-Ferrous; Cast Iron; Steel |
| Specification Number | DIN 338 |
| Coolant Through | No |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | P; K; M; N |
| Shank Diameter (Decimal Inch) | 0.3976 |
| Overall Length (mm) | 133.00 |
| Overall Length (Decimal Inch) | 5.2362 |
| Spiral Type | Regular |
| Flute Length (mm) | 87.00 |
| Flute Length (Decimal Inch) | 3.4252 |
| Series | 5523 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 10.1 |
| Maximum Drilling Depth (Decimal Inch) | 2.8290 |
| Maximum Drilling Depth (mm) | 71.85 |
| Shank Length (mm) | 46 |
| Drill Bit Diameter Tolerance | +0.000 to -0.027 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Standards | DIN 338 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.3500 - 0.4000 |
| Drill Bit Size Range (mm) | 10.00 - 12.50 |
| Material Grade | M35 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| Drill Bit Size (mm) | 10.10 |
| Drill Bit Size (Decimal Inch) | 0.3976 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | Straw |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | 4 Facet |
| Primary Workpiece Material | Aluminum & Non-Ferrous; Cast Iron; Steel |
| Specification Number | DIN 338 |
| Coolant Through | No |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | P; K; M; N |
| Shank Diameter (Decimal Inch) | 0.3976 |
| Overall Length (mm) | 133.00 |
| Overall Length (Decimal Inch) | 5.2362 |
| Spiral Type | Regular |
| Flute Length (mm) | 87.00 |
| Flute Length (Decimal Inch) | 3.4252 |
| Series | 5523 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 10.1 |
| Maximum Drilling Depth (Decimal Inch) | 2.8290 |
| Maximum Drilling Depth (mm) | 71.85 |
| Shank Length (mm) | 46 |
| Drill Bit Diameter Tolerance | +0.000 to -0.027 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Standards | DIN 338 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.3500 - 0.4000 |
| Drill Bit Size Range (mm) | 10.00 - 12.50 |
| Material Grade | M35 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| MSC Part # | 55075576 |
| Mfr Part # | 9055230101000 |
| Country of Origin Country of Origin is subject to change | Germany |
