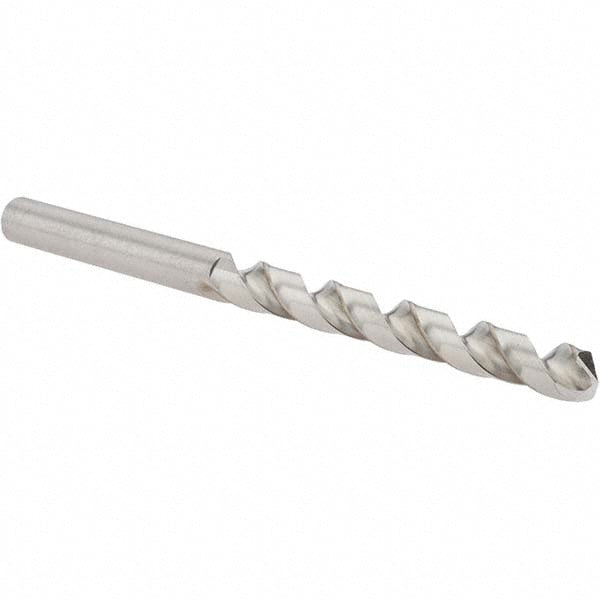

Jobber Drill: 15/64" Dia, 118 deg Point, Cobalt
Item #: 55076095
Brand: Guhring
Model #: 9055230059500
Product Specifications
| Drill Bit Size (Inch) | 15/64 |
| Drill Bit Size (Decimal Inch) | 0.2344 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | 4 Facet |
| Primary Workpiece Material | Aluminum & Non-Ferrous; Cast Iron; Steel |
| Specification Number | DIN 338 |
| Coolant Through | No |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | P; K; M; N |
| Shank Diameter (Decimal Inch) | 0.2344 |
| Overall Length (mm) | 93.00 |
| Overall Length (Decimal Inch) | 3.6614 |
| Spiral Type | Regular |
| Flute Length (mm) | 57.00 |
| Flute Length (Decimal Inch) | 2.2441 |
| Series | 5523 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (Inch) | 15/64 |
| Shank Diameter (mm) | 5.95 |
| Maximum Drilling Depth (Decimal Inch) | 1.8930 |
| Maximum Drilling Depth (mm) | 48.08 |
| Shank Length (mm) | 36 |
| Drill Bit Diameter Tolerance | +0.000 to -0.018 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Standards | DIN 338 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.2000 - 0.2500 |
| Material Grade | M35 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| Drill Bit Size (Inch) | 15/64 |
| Drill Bit Size (Decimal Inch) | 0.2344 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | 4 Facet |
| Primary Workpiece Material | Aluminum & Non-Ferrous; Cast Iron; Steel |
| Specification Number | DIN 338 |
| Coolant Through | No |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | P; K; M; N |
| Shank Diameter (Decimal Inch) | 0.2344 |
| Overall Length (mm) | 93.00 |
| Overall Length (Decimal Inch) | 3.6614 |
| Spiral Type | Regular |
| Flute Length (mm) | 57.00 |
| Flute Length (Decimal Inch) | 2.2441 |
| Series | 5523 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (Inch) | 15/64 |
| Shank Diameter (mm) | 5.95 |
| Maximum Drilling Depth (Decimal Inch) | 1.8930 |
| Maximum Drilling Depth (mm) | 48.08 |
| Shank Length (mm) | 36 |
| Drill Bit Diameter Tolerance | +0.000 to -0.018 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Standards | DIN 338 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.2000 - 0.2500 |
| Material Grade | M35 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| MSC Part # | 55076095 |
| Mfr Part # | 9055230059500 |
| Country of Origin Country of Origin is subject to change | Germany |
