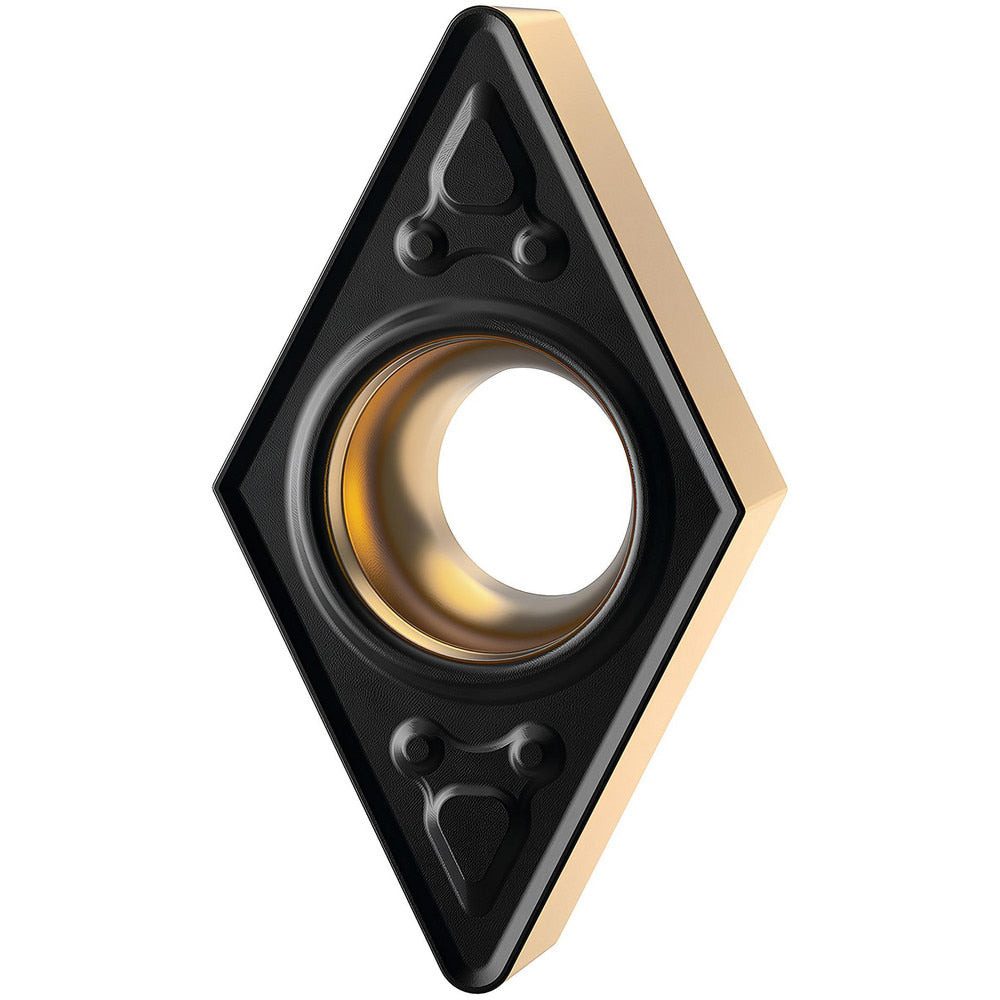

Turning Insert: DCMT3251MF KCP25C, Carbide
Item #: 56954191
Brand: Kennametal
Model #: 7026547
Product Specifications
| ANSI Insert Code | DCMT3251 |
| ISO Insert Code | DCMT11T304 |
| Relief Angle | 7 |
| Insert Style | DCMT |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 55 |
| Manufacturer Grade | KCP25C |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Series | Screw-On |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Chip Breaker Operation | Medium Machining; Finishing |
| Grade Characteristics | Steel (P) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (Decimal Inch) | 0.3049 |
| Insert Holding Method | Screw |
| Width (Inch) | 3/8 |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.9156 |
| Insert Length (mm) | 11.63 |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; N |
| Iso Code | DCMT11T304MF |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 7026547 |
| Proprietary Coating Designation | Multilayer Coating |
| Coating Classification | CVD |
| Chip Breaker | MF |
| Rake Angle | 0 |
| Cutting Edge Style | Honed; Chamfered |
| Industry Standard Number | DCMT3251MF |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Back Boring; Facing; Turning; Back Turning; Boring |
| ANSI Size Code | 3251 |
| ISO Size Code | 11T304 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 3251 |
