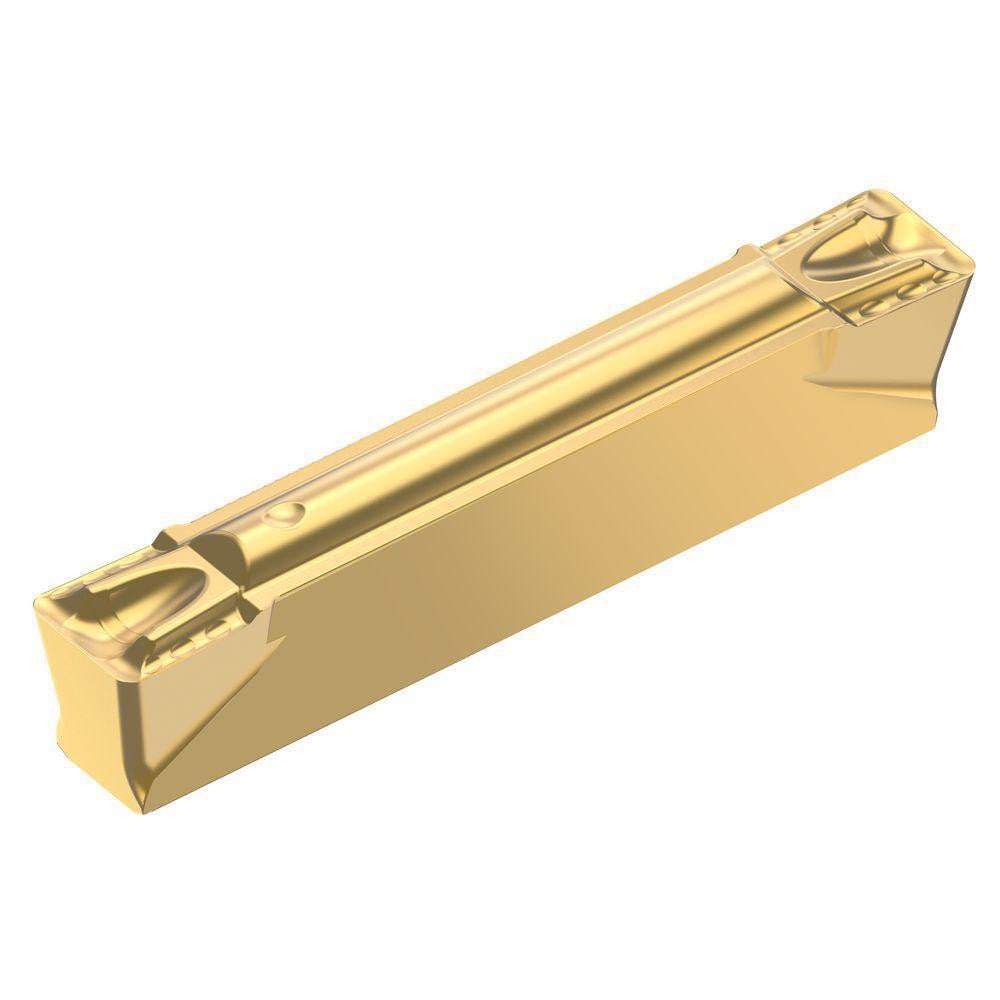

Grooving Insert: A4G 5 GUP, KCU10B, Carbide
Item #: 73557555
Brand: Kennametal
Model #: 7096761
Product Specifications
| Insert Style | A4G |
| Insert Size Code | 5 |
| Cutting Width (Decimal Inch) | 0.1990 |
| Cutting Width (mm) | 5.05 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.1650 |
| Maximum Depth of Cut (mm) | 4.20 |
| Insert Material | Carbide |
| Manufacturer Grade | KCU10B |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0160 |
| Corner Radius (mm) | 0.40 |
| Number Of Cutting Edges | 2 |
| Rake | Positive |
| Measurement Type | Metric |
| Insert Holding Method | Clamp |
| Insert Size | 5 |
| Lead Angle | 0.000 |
| Multi-use Tool | Yes |
| Series | A4 |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.9900 |
| Insert Thickness (Decimal Inch) | 0.1990 |
| UNSPSC Code | 23242105 |
| Chip Breaker | GUP |
| Insert Seat Size | 5 |
| Coating Classification | PVD |
| Coating/Finish | AlTiN |
| Single Or Double End | Double End |
| Insert Thickness | 5.05 |
| Insert Style | A4G |
| Insert Size Code | 5 |
| Cutting Width (Decimal Inch) | 0.1990 |
| Cutting Width (mm) | 5.05 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.1650 |
| Maximum Depth of Cut (mm) | 4.20 |
| Insert Material | Carbide |
| Manufacturer Grade | KCU10B |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0160 |
| Corner Radius (mm) | 0.40 |
| Number Of Cutting Edges | 2 |
| Rake | Positive |
| Measurement Type | Metric |
| Insert Holding Method | Clamp |
| Insert Size | 5 |
| Lead Angle | 0.000 |
| Multi-use Tool | Yes |
| Series | A4 |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.9900 |
| Insert Thickness (Decimal Inch) | 0.1990 |
| UNSPSC Code | 23242105 |
| Chip Breaker | GUP |
| Insert Seat Size | 5 |
| Coating Classification | PVD |
| Coating/Finish | AlTiN |
| Single Or Double End | Double End |
| Insert Thickness | 5.05 |
| MSC Part # | 73557555 |
| Mfr Part # | 7096761 |
| Country of Origin Country of Origin is subject to change | Germany |
