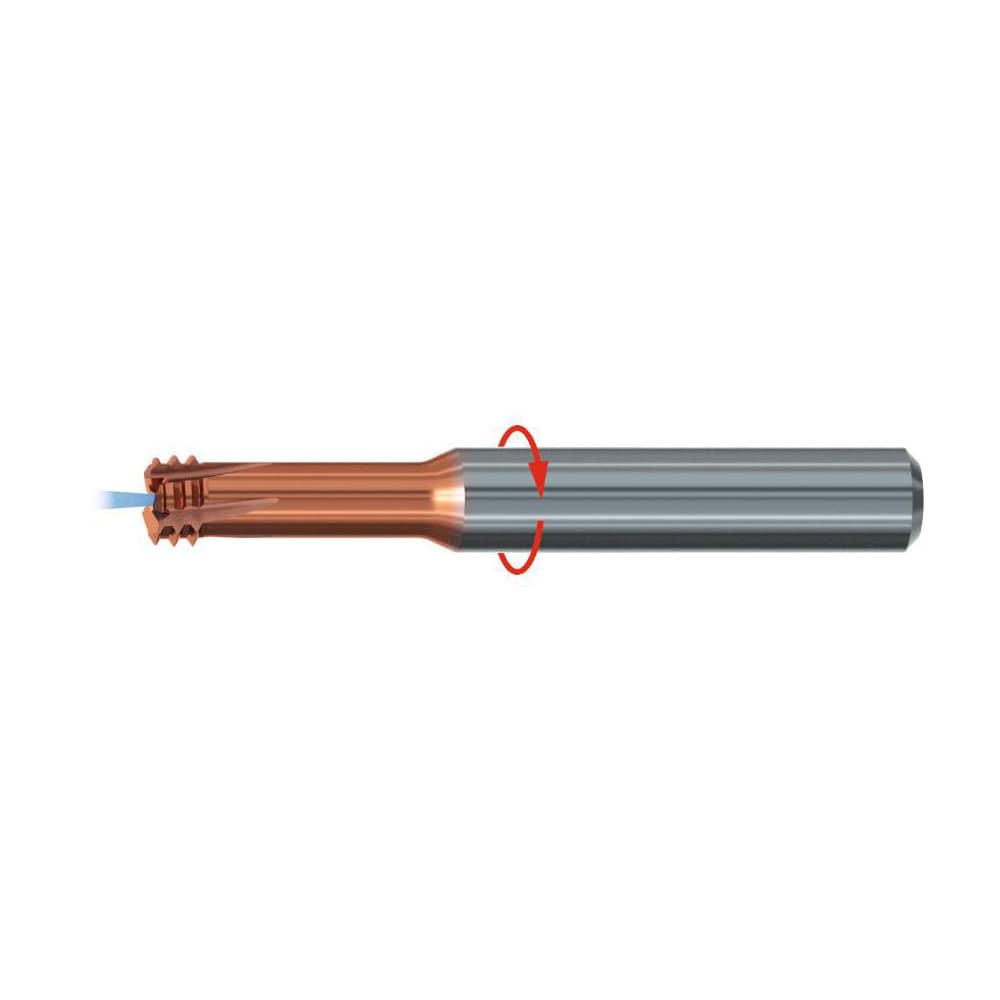

Helical Flute Thread Mill: 7/16-20, 6 Flute, 10.00 mm Shank Dia, Solid Carbide
Item #: 43155951
Brand: Emuge
Model #: GF7B682B.5046
Product Specifications
| Material | Solid Carbide |
| Thread Size (Inch) | 7/16-20 |
| Shank Diameter (mm) | 10.00 |
| Cutting Diameter (mm) | 9.27 |
| Shank Type | Cylindrical |
| Length of Cut (mm) | 24.10 |
| Overall Length (mm) | 70.00 |
| Thread Standard | UNF |
| Flute Direction | Left Hand |
| Series | GF7B682B |
| Number Of Flutes | 6 |
| Coating/Finish | ALCR-89 |
| Coolant Through | Yes |
| Teeth Per Inch | 20 |
| UNSPSC Code | 23242117 |
